RX130iN RX Model Series
Select a thumbnail to view a larger version
The SENSEI® RX130iN condensing tankless water heater from Rinnai is only the size of a small suitcase, uses either Natural Gas or Propane, and can be installed indoors or outdoors using the Versa-Vent™ accessory. Rinnai SENSEI® RX Series tankless water heaters last up to twice as long as tanks and have twice the warranty length. Plus, they save energy by heating water only when it is needed.
- Uniform Energy Factor (UEF): 0.97
- Warranty
- 15,000 BTU/H (minimum)
130,000 BTU/H (maximum) - Indoor or Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | RX130iN |
|---|---|
| Product Depth | 11.4 inch / (291 mm) |
| Product Height | 30.11 inch / (762 mm) |
| Product Width | 18.5 inch / (470 mm) |
| Product Weight | 54 lb / (24.4 kg) |
| Gas Type | NG or LP |
| Installation Type | Indoor or Outdoor |
| Recirculation Capable | Yes |
| Residential ENERGY STAR® | Yes |
| Uniform Energy Factor (UEF) | 0.97 |
| Domestic Hot Water Flow Rate (Maximum) | 7.1 GPM / (27 L/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
@small.jpg)
Single Unit Standoff Bracket Installation Instructions EnglishPDF 919 KB
Polypropylene Common Venting Installation Instruction EnglishPDF 6 MB
Polypropylene Common Venting Installation Instructions-Version H SpanishPDF 6 MB-Freeze Protection Instructions for Tankless Water Heaters@small.jpg)
Freeze Protection Component Replacement Instructions for Tankless Water Heaters EnglishPDF 2 MB@small.jpg)
Sensei PVC and CPVC Common Venting Installation Instruction EnglishPDF 2 MB
VE and SENSEI RX CX Pipe Cover Installation Instructions EnglishPDF 2 MB
Sensei RX And CX Vent Component Replacement Template EnglishPDF 262 KB
Single Unit Standoff Bracket Installation Instructions EnglishPDF 919 KB
RGBCTWHRX Installation Instructions EnglishPDF 3 MB
PCB Replacement Instructions-SENSEI RX CX EnglishPDF 7 MB
Sensei RX CX Gas Valve Component Replacement Instructions EnglishPDF 5 MB@small.jpg)
Combustion Fan Component Replacement Instructions Sensei RX CX EnglishPDF 3 MB@small.jpg)
Sensei RX CX Heat Exchanger Component Replacement Instructions EnglishPDF 4 MB
Water Flow Servo Valve Replacement Instructions-SENSEI RX CX EnglishPDF 1 MB@small.jpg)
Internal Add-on Recirculation Conversion Instructions SENSEI RX CX EnglishPDF 7 MB
EZ-3 Connect Instructions EnglishPDF 1 MB
Retrofit Door For RX In RGB-CTWH-4 installation Instructions EnglishPDF 3 MB
Retrofit Door For RX In RGB-CTWH Installation Instructions EnglishPDF 3 MB
Polypropylene Common Venting Installation Instructions-Version H FrenchPDF 6 MB
Sensei PVC and CPVC Common Venting Installation Instruction FrenchPDF 2 MB
PCB Component Replacement Instructions-SENSEI RX CX-FrenchPDF 4 MB
Gas Valve Component Replacement Instructions-SENSEI RX CX-FrenchPDF 6 MB
Combustion Fan Component Replacement Instructions-SENSEI RX CX-FrenchPDF 3 MB
Heat Exchanger Component Replacement Instructions-SENSEI RX CX-FrenchPDF 5 MB
Water Flow Servo Valve Replacement Instructions-SENSEI RX CX-FrenchPDF 2 MB
PCB Component Replacement Instructions-SENSEI RX CX-SpanishPDF 5 MB
Gas Valve Component Replacement Instructions-SENSEI RX CX-SpanishPDF 6 MB
Combustion Fan Component Replacement Instructions-SENSEI RX CX-SpanishPDF 3 MB
Heat Exchanger Component Replacement Instructions-SENSEI RX CX-SpanishPDF 5 MB
Water Flow Servo Valve Replacement Instructions-SENSEI RX CX-SpanishPDF 2 MB
PVC and CPVC Common Venting Installation Instructions for SENSEI SpanishPDF 2 MB
SENSEI RX CX Replacement Part Instructions APPROVED EnglishPDF 172 KB -
SENSEI RX Gas Conversion Manual EnglishPDF 2 MB
SENSEI RX_CX Outdoor Conversion Manual EnglishPDF 3 MB
SENSEI RX CX Gas Conversion Manual-SpanishPDF 2 MB
SENSEI RX CX Indoor to Outdoor Conversion Manual-SpanishPDF 2 MB -

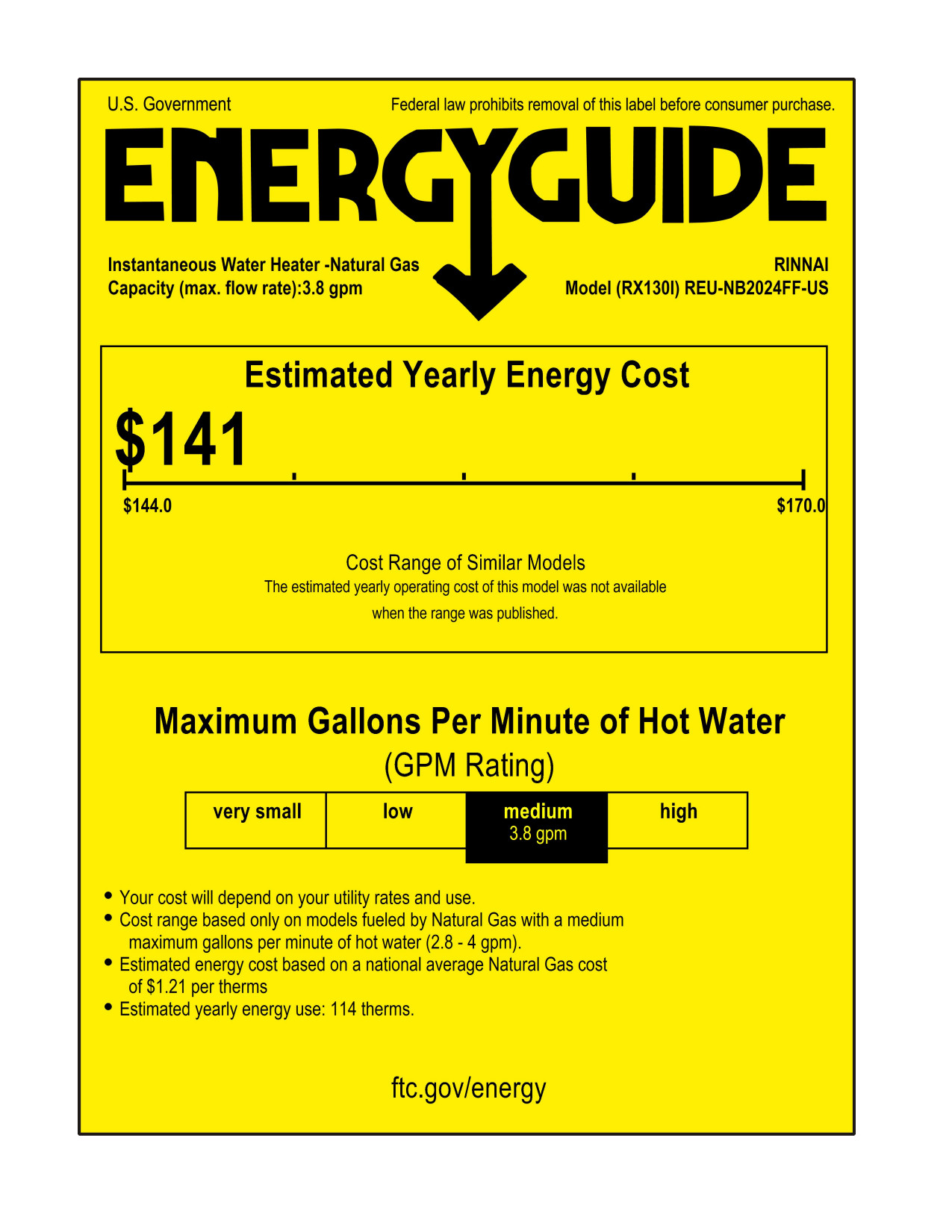

Energy Guide Label - RX130iNPDF 1 MB -
SENSEI RX/ RXP Residential Owners Installation And Operation Manual EnglishPDF 8 MB
SENSEI RX/RXP Residential Installation And Operation Manual - FrenchPDF 10 MB -
Sensei Brochure - RXPDF 9 MB
Sensei RX Series Brochure - RX ModelsPDF 9 MB
Sensei RX Series Brochure French - RX ModelsPDF 9 MB
SENSEI RX interactive QR Code icon 1.jpgJPG 148 KB
Commercial Model Crossover mix EnglishPDF 1 MB

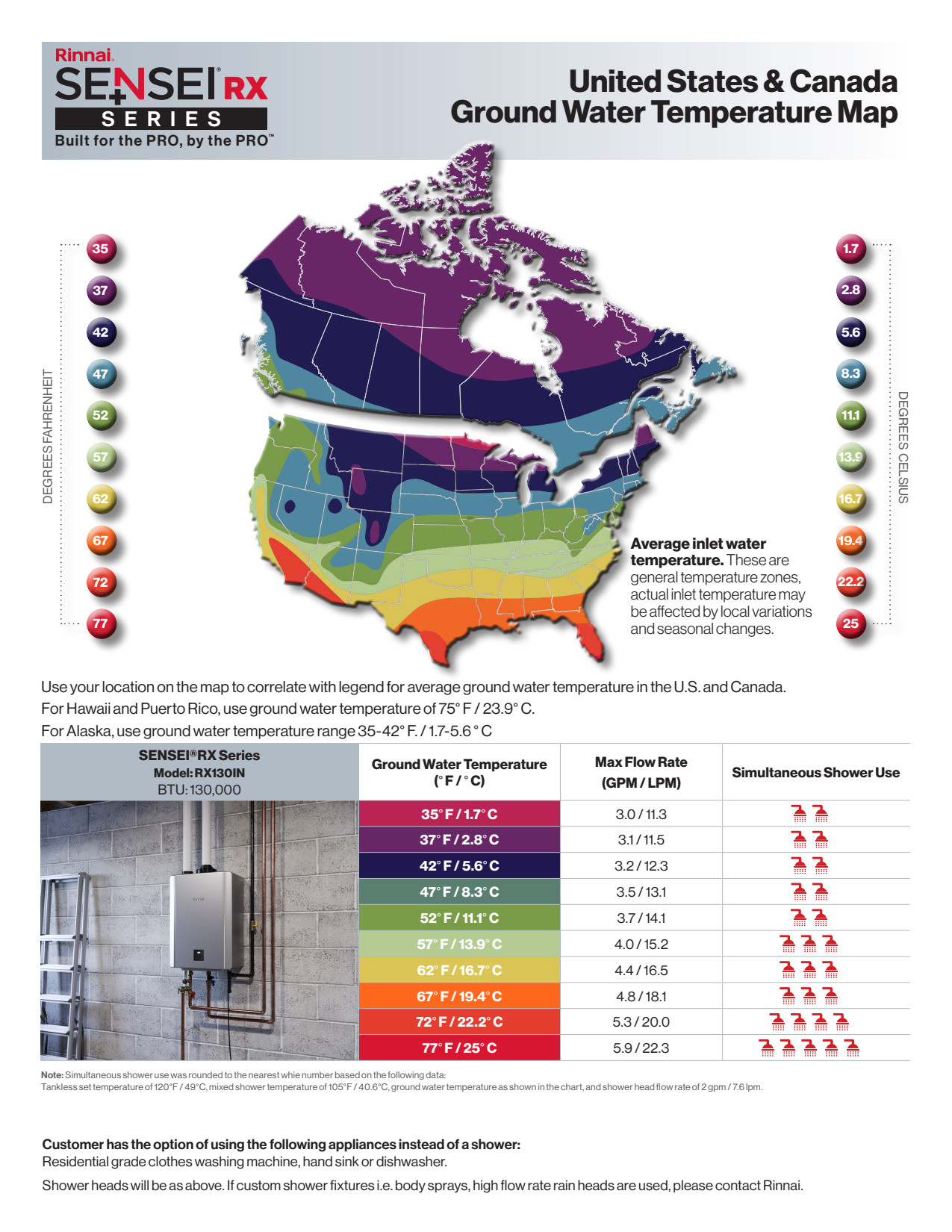

US and Canada Ground Water Temperature Guide - RX130iNPDF 1 MB -
Sensei RX Residential Condensing Specification Sheet EnglishPDF 677 KB@small.jpg)
SENSEI RX Residential Condensing Specification Sheet-FrenchPDF 732 KB
SENSEI RX Residential Condensing Specification Sheet-SpanishPDF 727 KB@small.jpg)

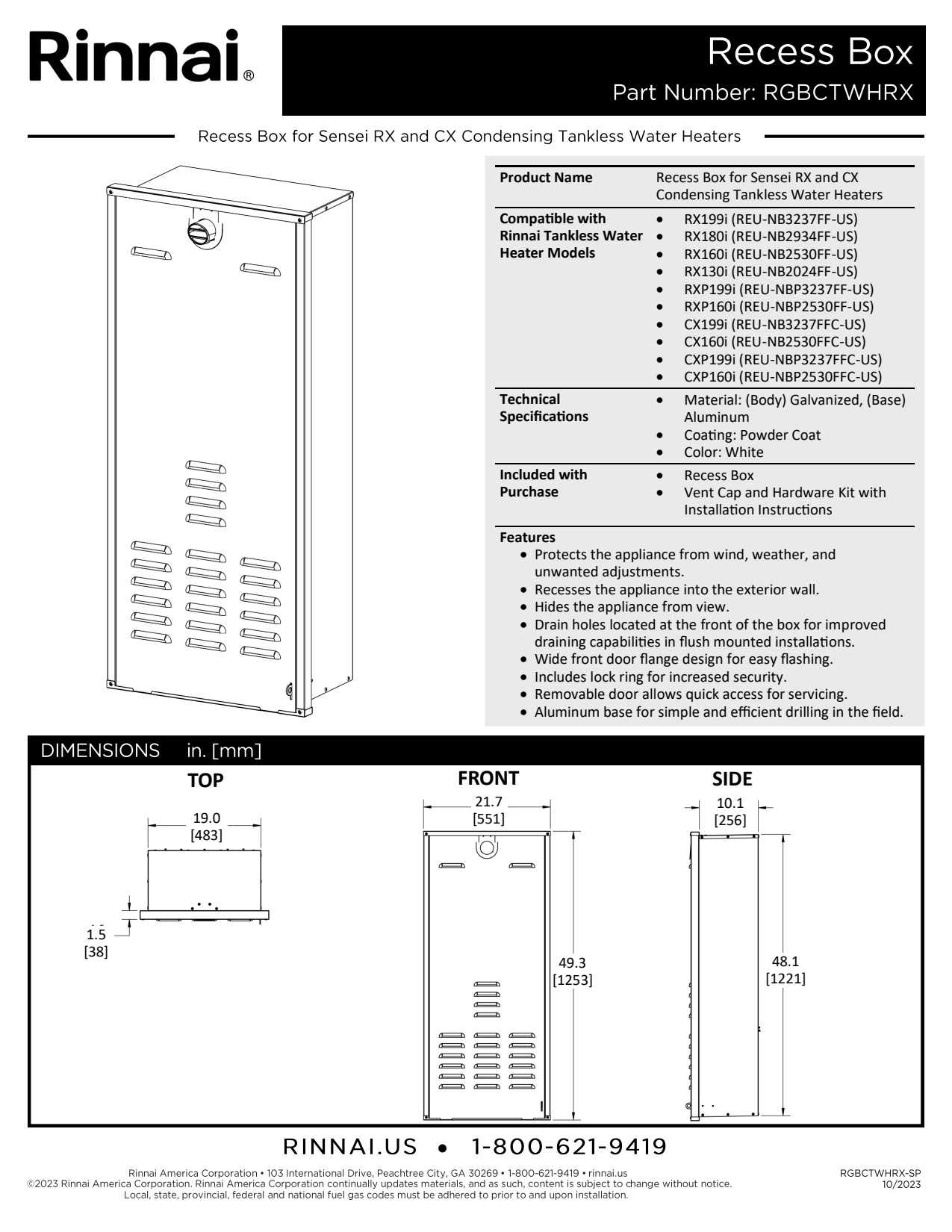

Sensei Recess Box Specification Sheet EnglishPDF 421 KB -
 Announcing IPEX System 1738 PVC Approval@small.jpg)
Announcing IPEX System 1738 PVC Approval Technical Bulletins EnglishPDF 294 KB
SENSEI RX RXP CX CXP Rating Plate Update Technical Bulletin EnglishPDF 647 KB Slope of Air Intake Pipe for SENSEI RX CX Water Heaters@small.jpg)
Slope of Air Intake Pipe for SENSEI RX CX Water Heaters Technical BulletinPDF 201 KB -
@small.jpg)
Troubleshooting TWH Diagnostic Codes EnglishPDF 2 MB
Sensei RX CX Technical Data Sheet EnglishPDF 3 MB
Sensei RX Technical Data Sheet FrenchPDF 3 MB
SENSEI RX CX Check Sheet EnglishPDF 670 KB
SENSEI RX CX Technical Data Sheet - FrenchPDF 3 MB
Troubleshooting TWH Diagnostic Codes-FrenchPDF 2 MB
Troubleshooting TWH Diagnostic Codes-SpanishPDF 2 MB
SENSEI RX CX Check Sheet-SpanishPDF 1 MB -
_Warranty_SENSEI Residential@small.jpg)
Sensei Residential Warranty - EnglishPDF 219 KB
Sensei Residential Warranty - EnglishPDF 219 KB
SENSEI Residential Warranty - FrenchPDF 259 KB
SENSEI Residential Warranty - SpanishPDF 250 KB
iWarranty information is available in the Installation & Owner Manual.
