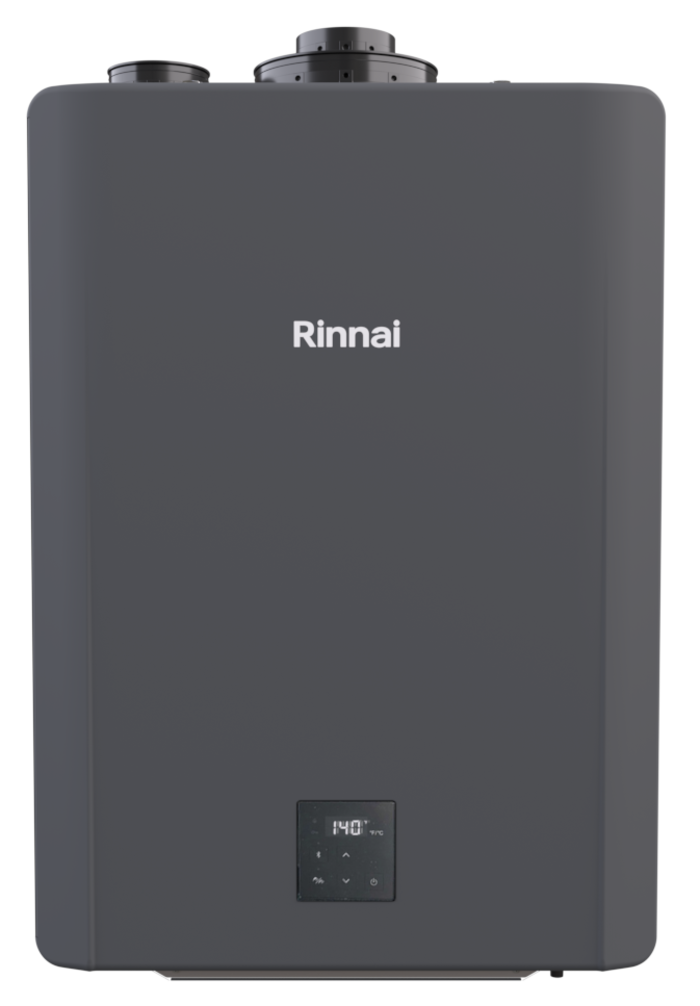

CX160iN CX Model Series
Select a thumbnail to view a larger version
SENSEI™ CX Series is the Built for the PRO, by the PRO with a new, more compact combustion design that makes it easier to install with enhanced operational performance and serviceability.
- Uniform Energy Factor (UEF): 0.97
- 97% Thermal Efficiency
- Warranty 8 yrs or 12K hours on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,000 BTU/H (minimum)
160,000 BTU/H (maximum) - Indoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | CX160iN |
|---|---|
| Product Depth | 11.4 inch / (291 mm) |
| Product Height | 30.11 inch / (762 mm) |
| Product Width | 18.5 inch / (470 mm) |
| Product Weight | 54 lb / (24.4 kg) |
| Installation Type | Indoor |
| Recirculation Capable | Yes |
| Residential ENERGY STAR® | Yes |
| Uniform Energy Factor (UEF) | 0.97 |
| Domestic Hot Water Flow Rate (Maximum) | 9.0 GPM / (34 L/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
@small.jpg)
Single Unit Standoff Bracket Component And Accessory Installation Instructions EnglishPDF 919 KB
Polypropylene Common Venting Owners Installation and Operation ManualPDF 6 MB
Polypropylene Common Venting Owners Installation and Operation Manual EnglishPDF 6 MB-Freeze Protection Instructions for Tankless Water Heaters@small.jpg)
Freeze Protection Component Replacement Instructions for Tankless Water HeatersPDF 2 MB@small.jpg)
Sensei PVC and CPVC Common Venting Owners Installation And Operation Manual EnglishPDF 2 MB
VE and SENSEI RX CX Pipe Cover Installation Component Replacement - RXPDF 2 MB
Sensei RX And CX Vent Component Replacement TemplatePDF 262 KB
Single Unit Standoff Bracket Component And Accessory Installation Instructions EnglishPDF 919 KB
RGBCTWHRX Componenet Replacement InstructionsPDF 3 MB
Sensei PCB Component Replacement InstructionsPDF 7 MB
Sensei RX CX Gas Valve Component Replacement InstructionsPDF 5 MB@small.jpg)
Sensei RX CX Combustion Fan Component Replacement InstructionsPDF 3 MB@small.jpg)
Sensei RX CX Heat Exchanger Component Replacement InstructionsPDF 4 MB
Sensei Water Flow Servo Valve Component Replacement Instructions- RX/CXPDF 1 MB@small.jpg)
Sensei RX CX Internal Add-on Recirculation Conversion Component Replacement InstructionsPDF 7 MB
Sensei EZ Connect Component Replacement InstructionsPDF 1 MB
Retrofit Door For RX In RGB-CTWH-4 Component Replacement InstructionsPDF 3 MB
Retrofit Door For RX In RGB-CTWH Component Replacement InstructionsPDF 3 MB
Polypropylene Common Venting Component Replacement Instruction -Version H_FrenchPDF 6 MB
Sensei PVC and CPVC Common Venting Owners Installation And Operation Manual FrenchPDF 2 MB
PCB Component Replacement Instructions-SENSEI RX CX-FrenchPDF 4 MB
Gas Valve Component Replacement Instructions-SENSEI RX CX-FrenchPDF 6 MB
Combustion Fan Component Replacement Instructions-SENSEI RX CX-FrenchPDF 3 MB
Heat Exchanger Component Replacement Instructions-SENSEI RX CX-FrenchPDF 5 MB
SENSEI RX CX Pump Component Replacement Instructions FrenchPDF 1 MB
Water Flow Servo Valve Component Replacement Instructions-SENSEI RX CX-FrenchPDF 2 MB
PCB Component Replacement Instructions-SENSEI RX CX-SpanishPDF 5 MB
Gas Valve Component Replacement Instructions-SENSEI RX CX-SpanishPDF 6 MB
Combustion Fan Component Replacement Instructions-SENSEI RX CX-SpanishPDF 3 MB
Heat Exchanger Component Replacement Instructions-SENSEI RX CX-SpanishPDF 5 MB
SENSEI RX CX Pump Component Replacement Instructions SpanishPDF 1 MB
Water Flow Servo Valve Component Replacement Instructions-SENSEI RX CX-SpanishPDF 2 MB
PVC and CPVC Common Venting Owners Installation and Operation Manual Instructions for SENSEI SpanishPDF 2 MB -
SENSEI RX Gas Conversion ManualPDF 2 MB
SENSEI RX_CX Outdoor Conversion ManualPDF 3 MB
SENSEI RX CX Gas Conversion Manual-SpanishPDF 2 MB
SENSEI RX CX Indoor to Outdoor Conversion Manual-SpanishPDF 2 MB -

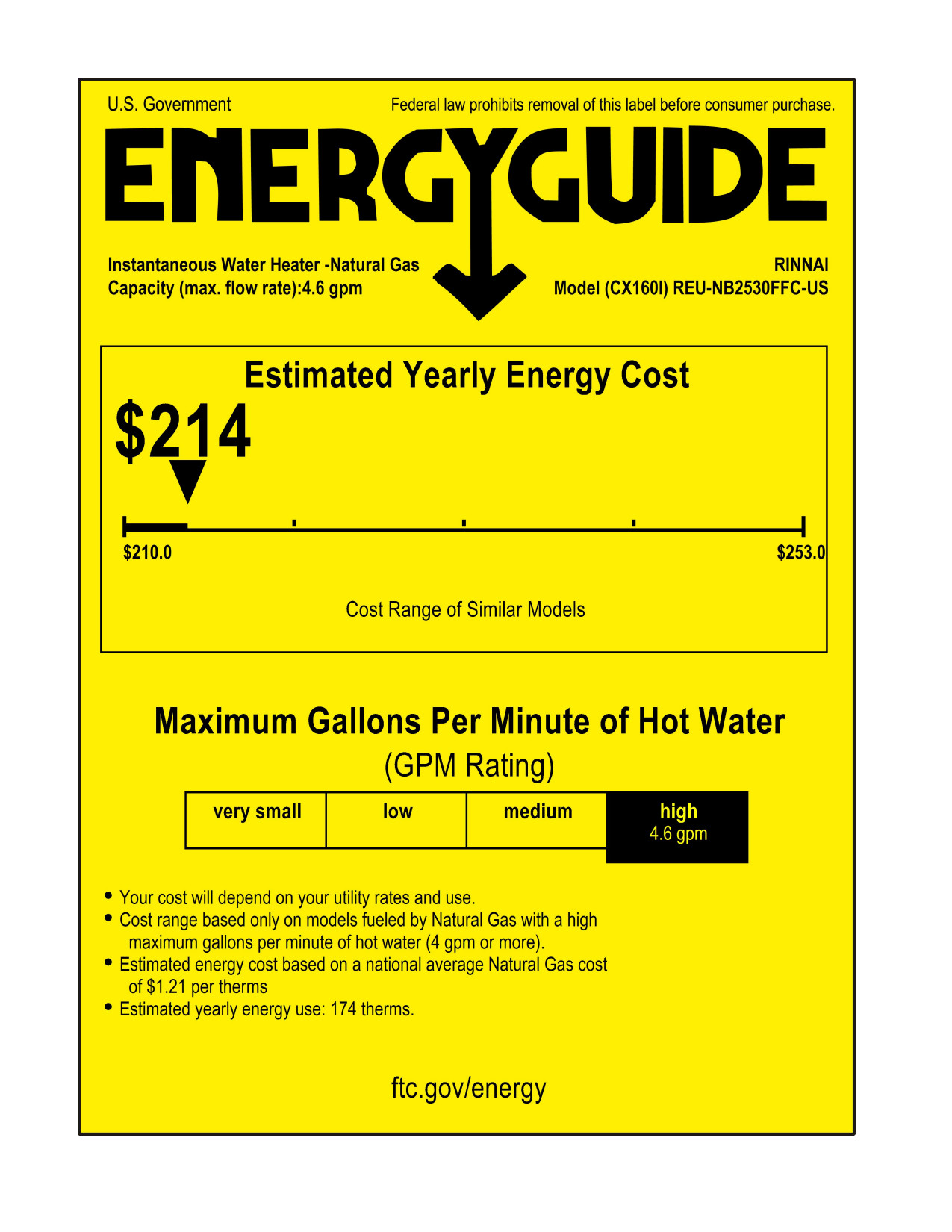

Energy Guide Label - CX160iNPDF 1 MB -

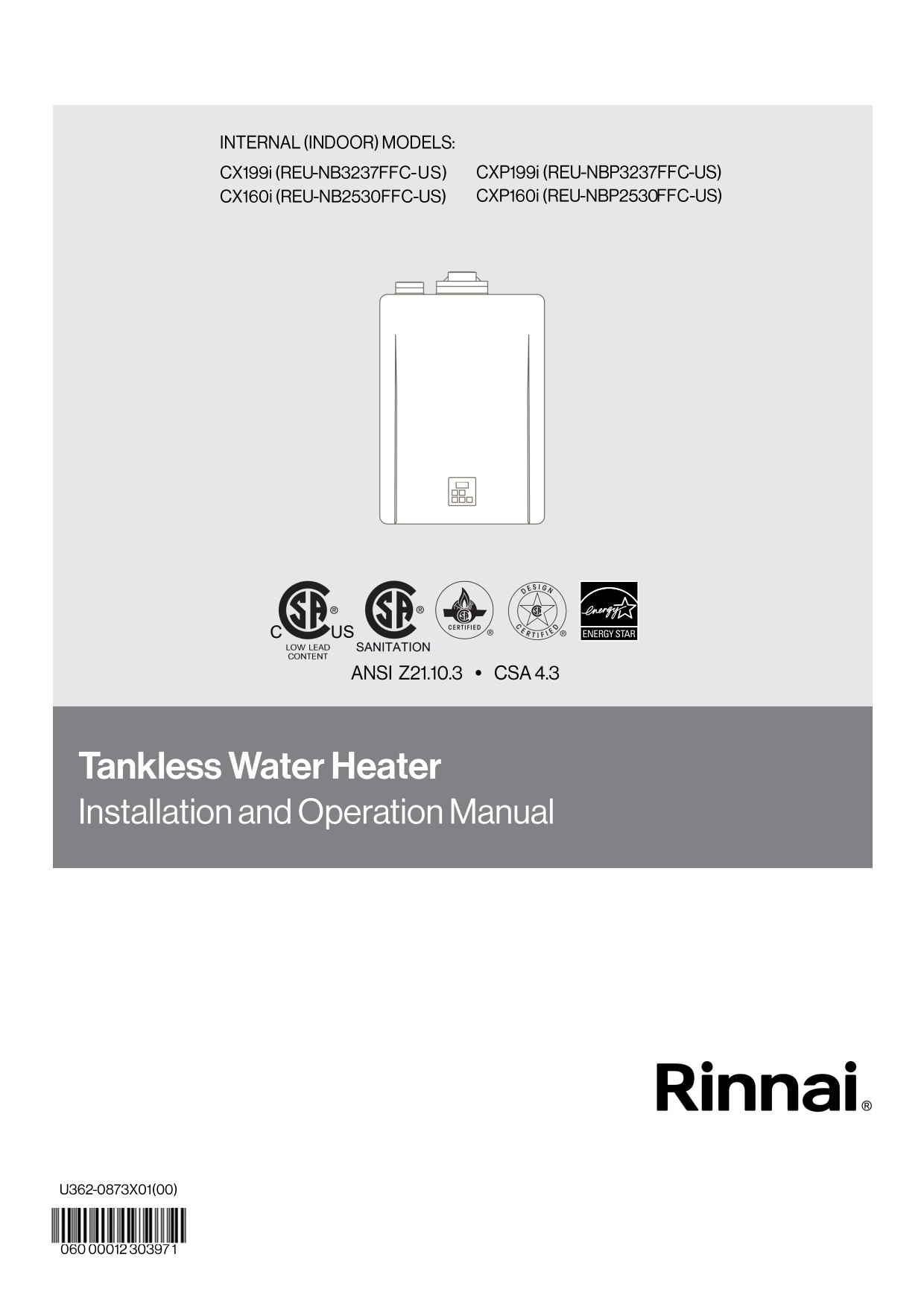

Sensei CX Commercial Owners Installation And Operation ManualPDF 9 MB
Sensei CX CXP Commercial Owners Installation And Operation Manual FrenchPDF 10 MB
Sensei TRS With CX Installation Instructions EnglishPDF 4 MB
SENSEI CX Demand Duo H-Series Retrofit Kit Owners Installation And Operational Manual EnglishPDF 7 MB
SENSEI CX Demand Duo H-Series Retrofit Kit Owners Installation and Operation Manual-FrenchPDF 7 MB

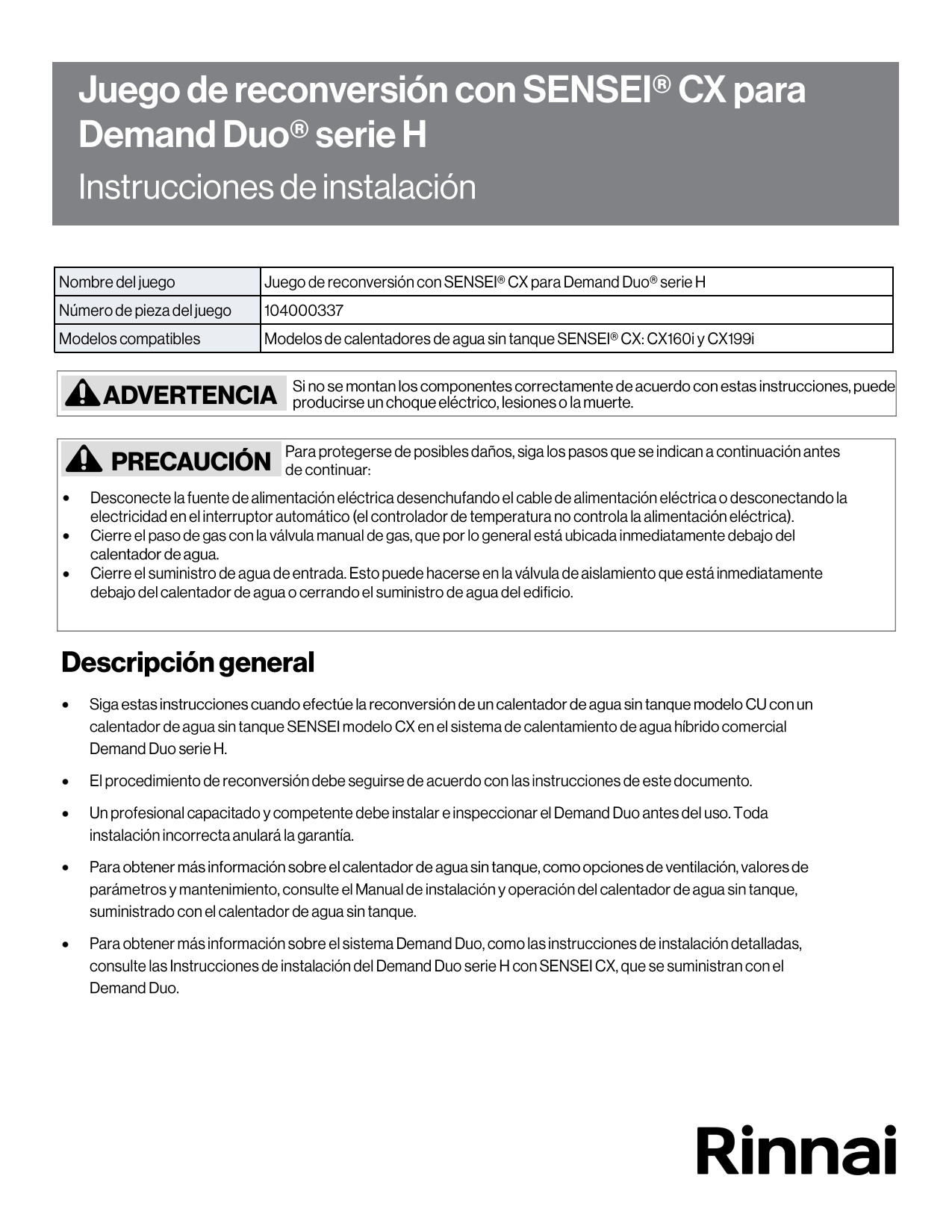

SENSEI CX Demand Duo H-Series Retrofit Kit Owners Installation and Operation Manual-SpanishPDF 7 MB -

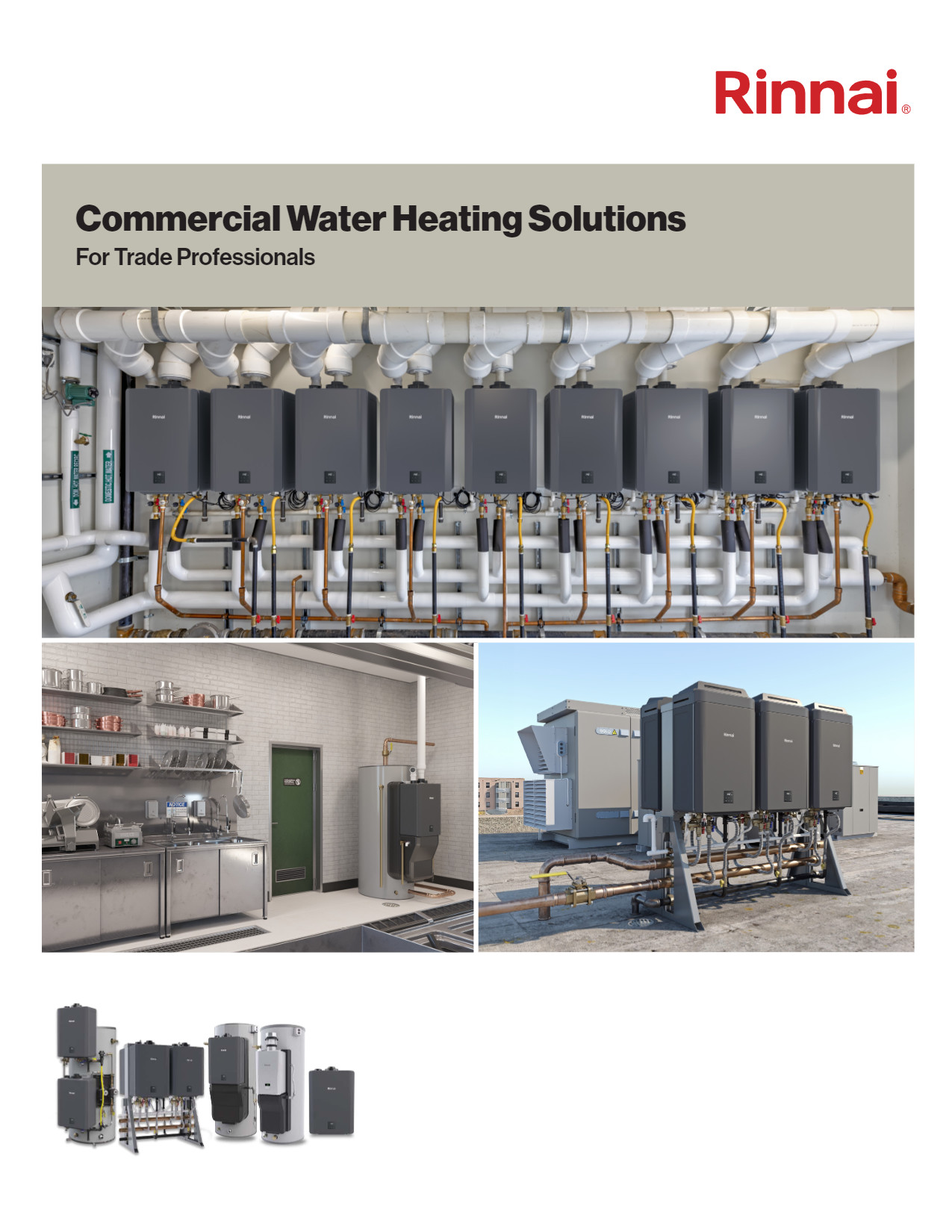

Sensei BrochurePDF 21 MB@small.jpg)

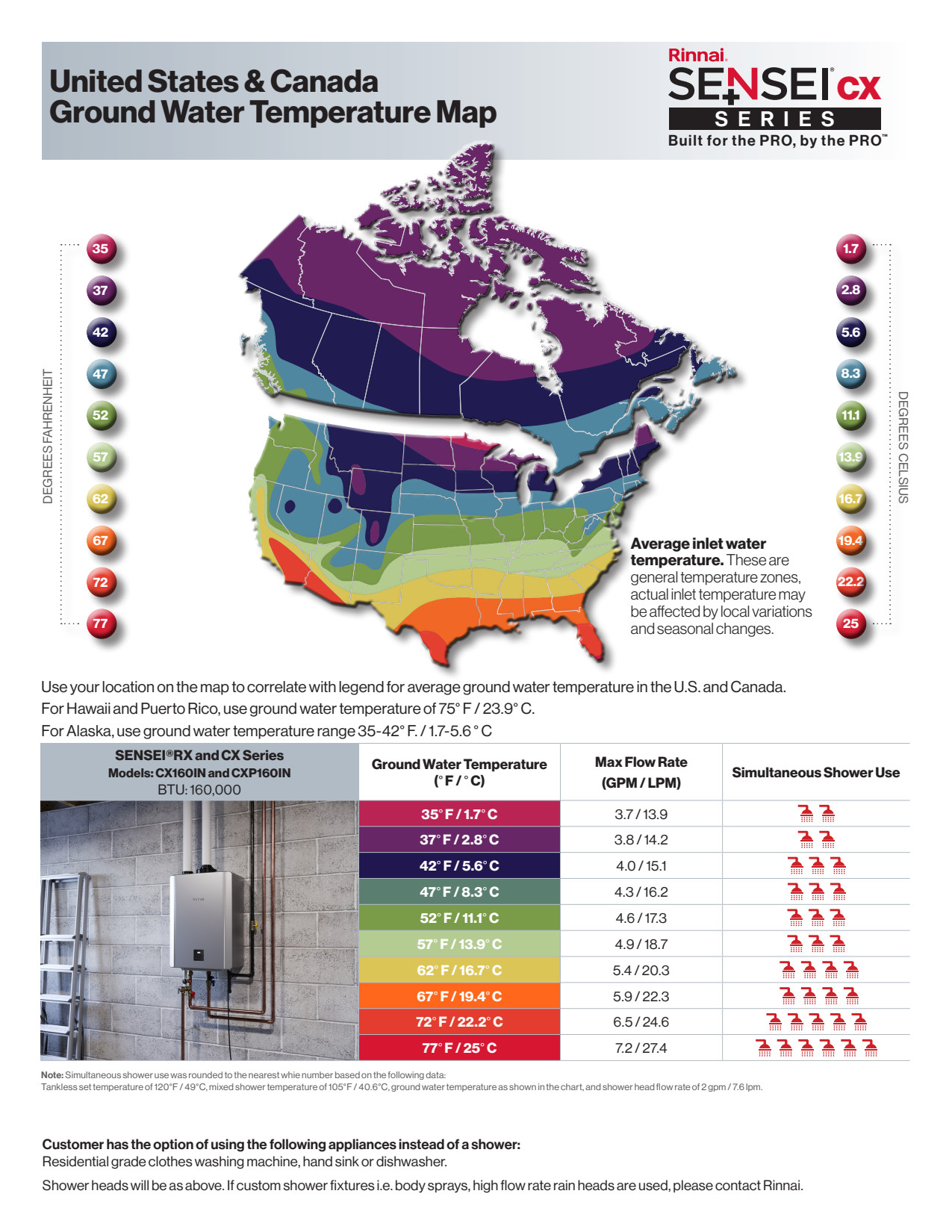

US and Canada Ground Water Temperature Guide - CXP160iNPDF 1 MB -

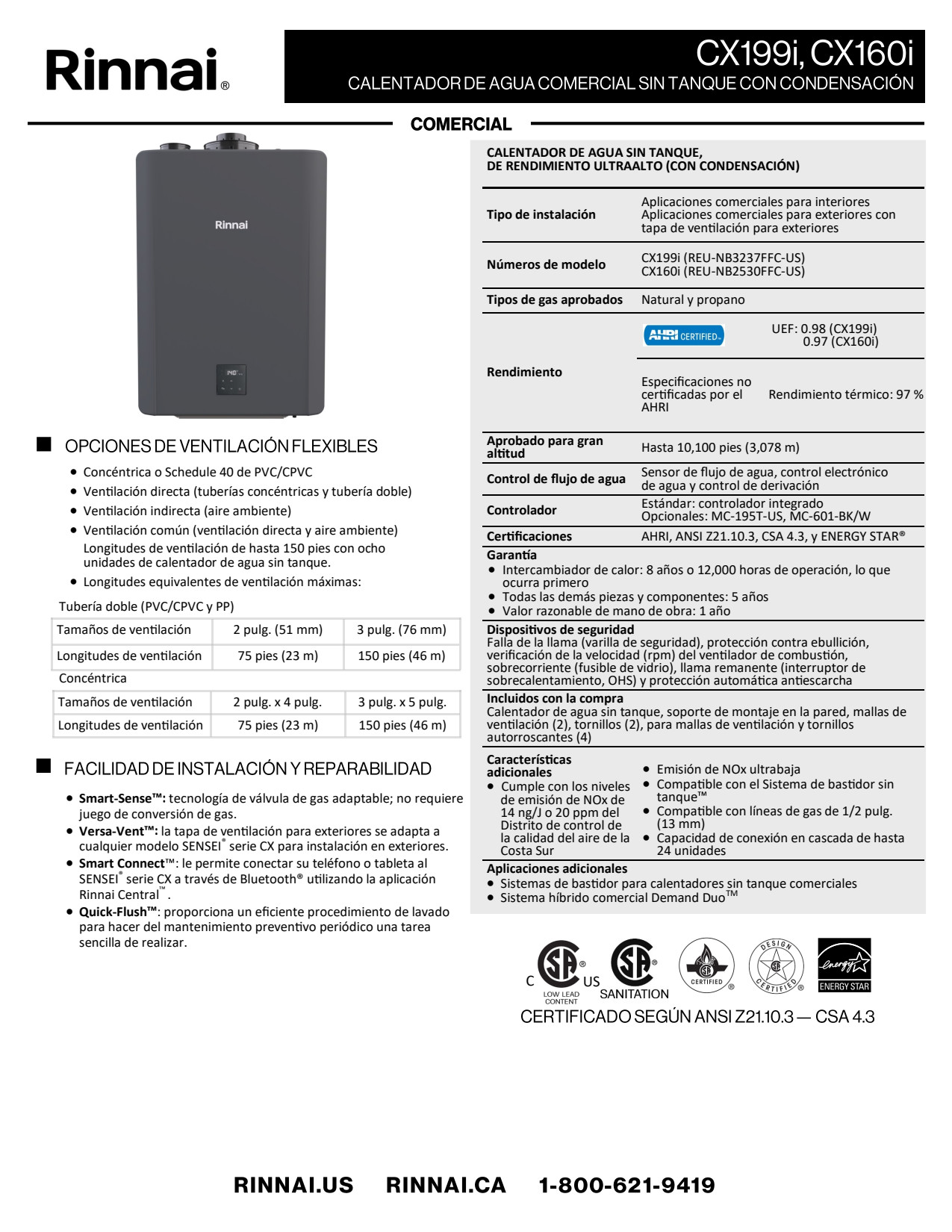

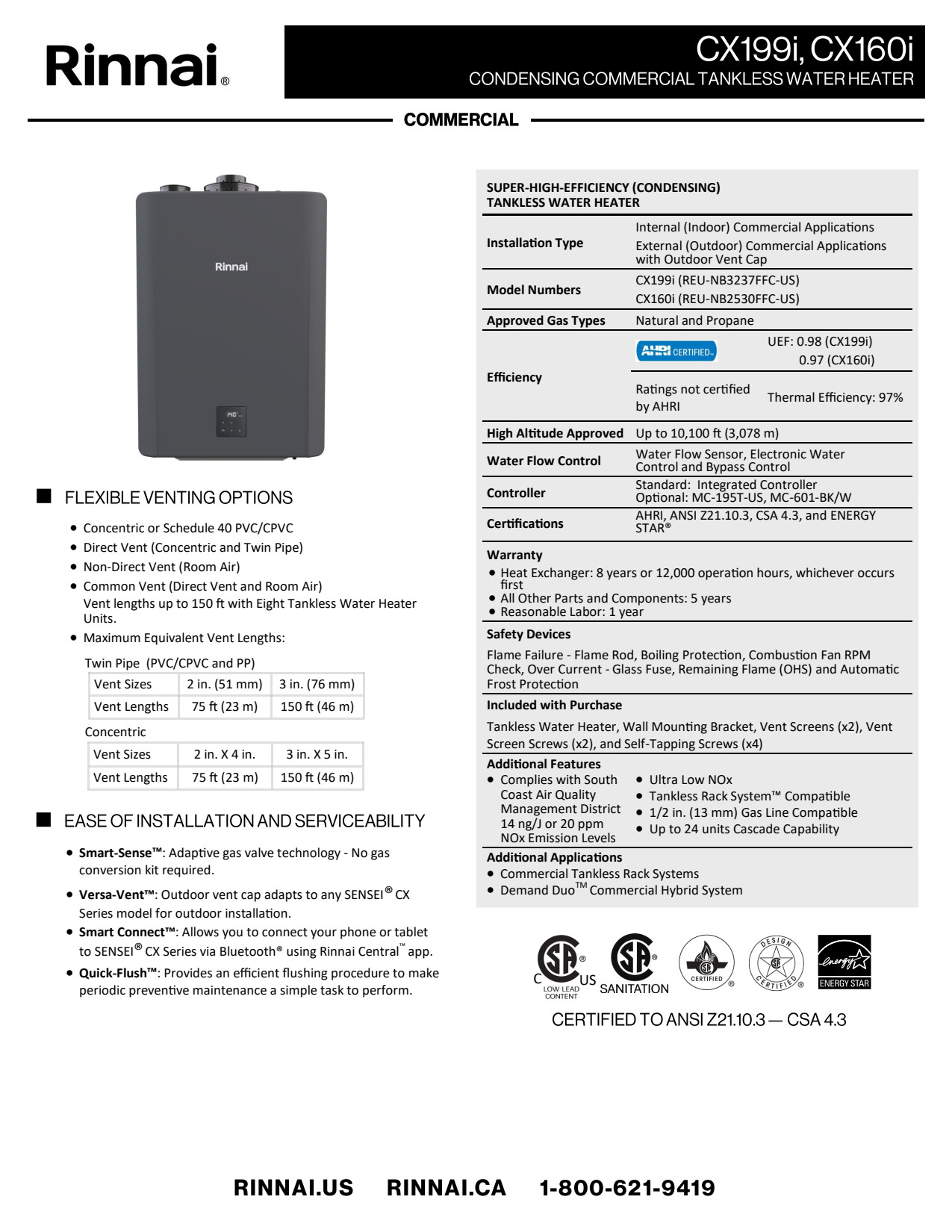

SENSEI CX Commercial Condensing Specification Sheet - CX SeriesPDF 598 KB
Sensei TRS with CX Units Specification sheet EnglishPDF 1 MB
SENSEI CX Commercial Condensing Specification Sheet-FrenchPDF 649 KB -
 Announcing IPEX System 1738 PVC Approval@small.jpg)
Tankless Water Heater Announcing IPEX System 1738 PVC Approval Technical Bulletins EnglishPDF 294 KB

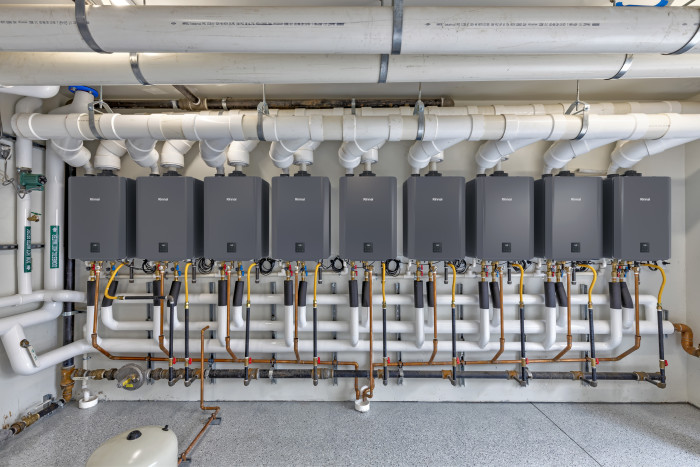

TB-201 Cascade System with CX and CU Models Technical Bulletins EnglishPDF 381 KB -
@small.jpg)
TWH Troubleshooting Technical Data Sheet EnglishPDF 2 MB
Sensei RX CX Technical Data Sheet EnglishPDF 3 MB
Sensei RX Technical Data Sheet FrenchPDF 3 MB
SENSEI RX CX Check Technical Data Sheet - EnglishPDF 670 KB
SENSEI RX CX Technical Data Sheet - FrenchPDF 3 MB
TWH Troubleshooting Technical Data Sheet FrenchPDF 2 MB
TWH Troubleshooting Technical Data Sheet SpanishPDF 2 MB
SENSEI RX CX Check Technical Data Sheet - SpanishPDF 1 MB -
@small.jpg)
Sensei Commercial Warranty - EnglishPDF 228 KB
SENSEI Commercial Warranty - FrenchPDF 253 KB
SENSEI Commercial Warranty - SpanishPDF 237 KB
Warrantyi
| Warranty - Standard for Commercial | 8 yrs or 12K hours on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
|---|
iWarranty information is available in the Installation & Owner Manual.
