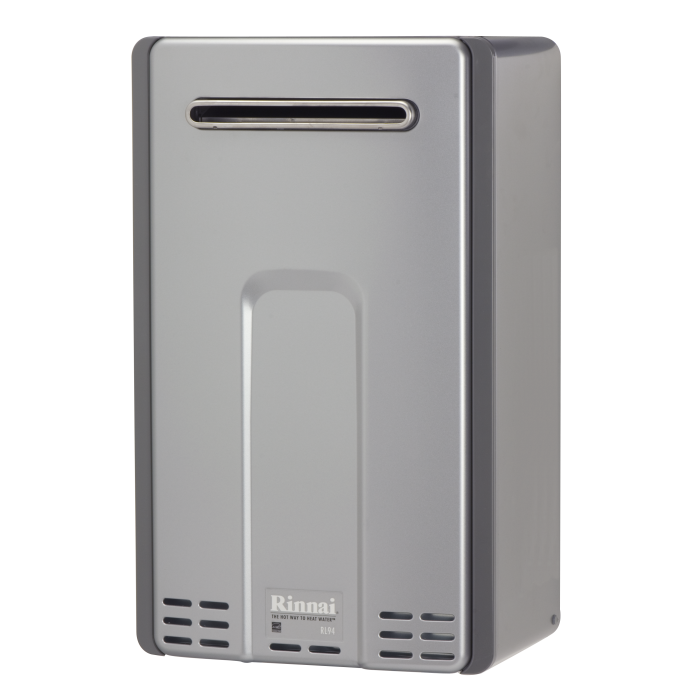

RL94eP RL Model Series
Select a thumbnail to view a larger version
Enjoy an endless supply of hot water with this high efficiency non-condensing propane fueled tankless water heater from Rinnai. Only the size of a small suitcase, the RL94eP is compact, easy-to-install, reliable and perfect for outdoor locations. Rinnai products provide peace of mind with warranties that surpass the competition.
- Uniform Energy Factor (UEF): 0.81
- Warranty 12 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 10,300 BTU (minimum)
199,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | RL94eP |
|---|---|
| Product Depth | 9.6 in / (242.7 mm) |
| Product Height | 24.3 in / (616.2 mm) |
| Product Width | 14.04 in / (356.6 mm) |
| Product Weight | 44.3 lb / (20.1 kg) |
| Gas Type | Propane |
| Installation Type | Outdoor |
| Recirculation Capable | Yes |
| Uniform Energy Factor (UEF) | 0.81 |
| Domestic Hot Water Flow Rate (Maximum) | 9.8 GPM / (37.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-

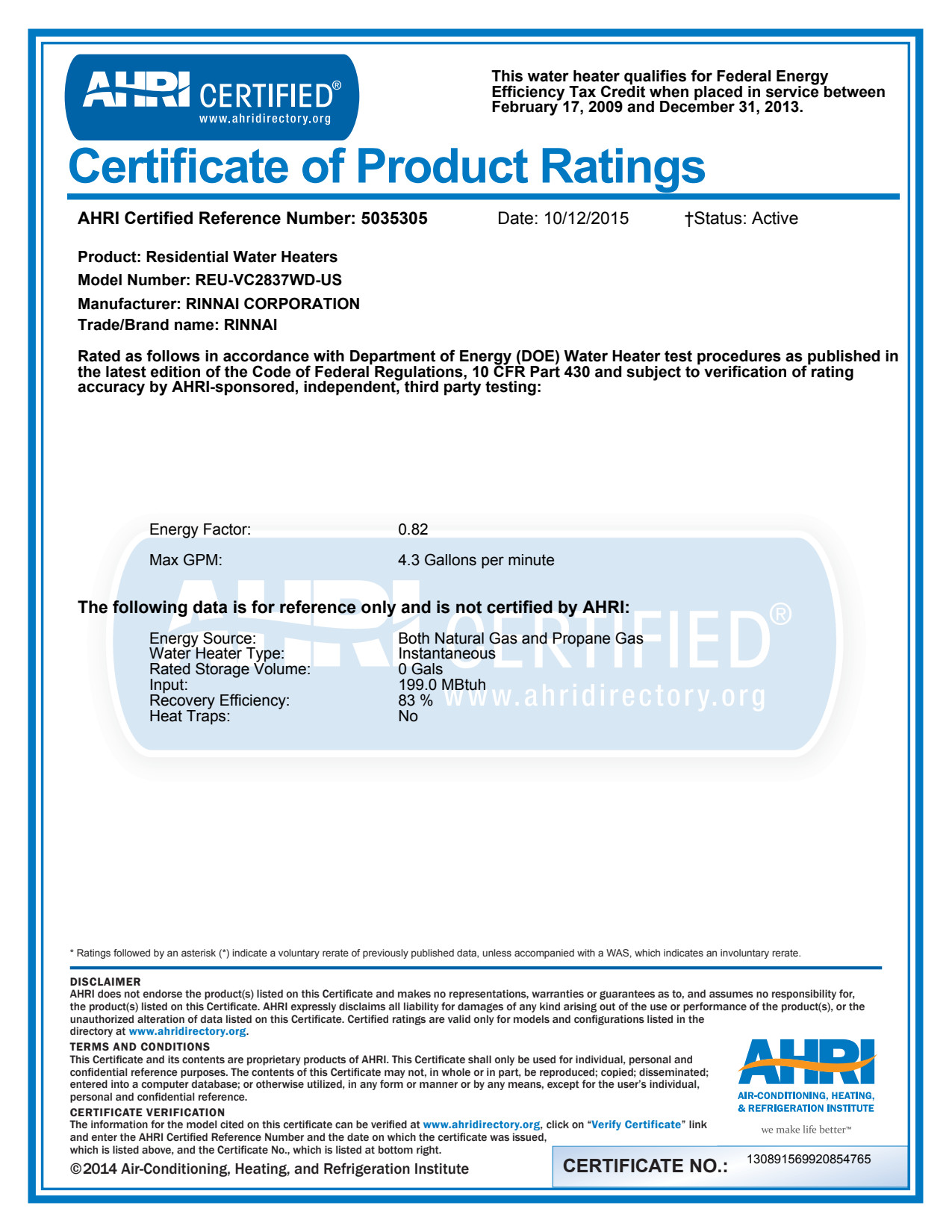

AHRICertificate-RL94ePDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -
RL Water Flow Servo Valve Component Replacment Instructions-EnglishPDF 0 MB VB and Condensing@small.jpg)
RC Water Flow Servo (with bypass) VB and Condensing EnglishPDF 515 KB
RL Water Flow Servo Valve Component Replacment Instructions-EnglishPDF 0 MB
VC Combustion Fan Component Replacement Instructions EnglishPDF 686 KB -

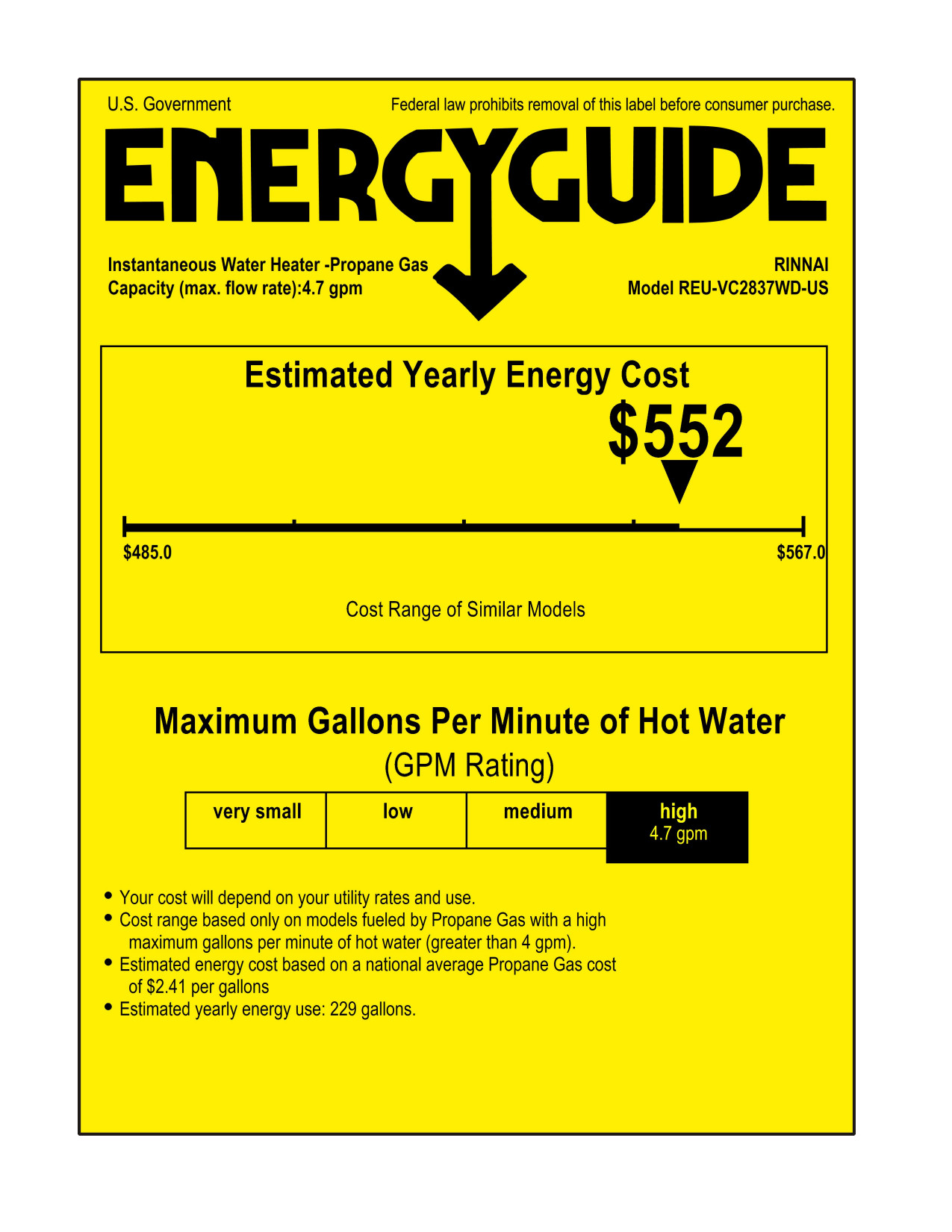

Energy Guide - RL94ePPDF 885 KB -

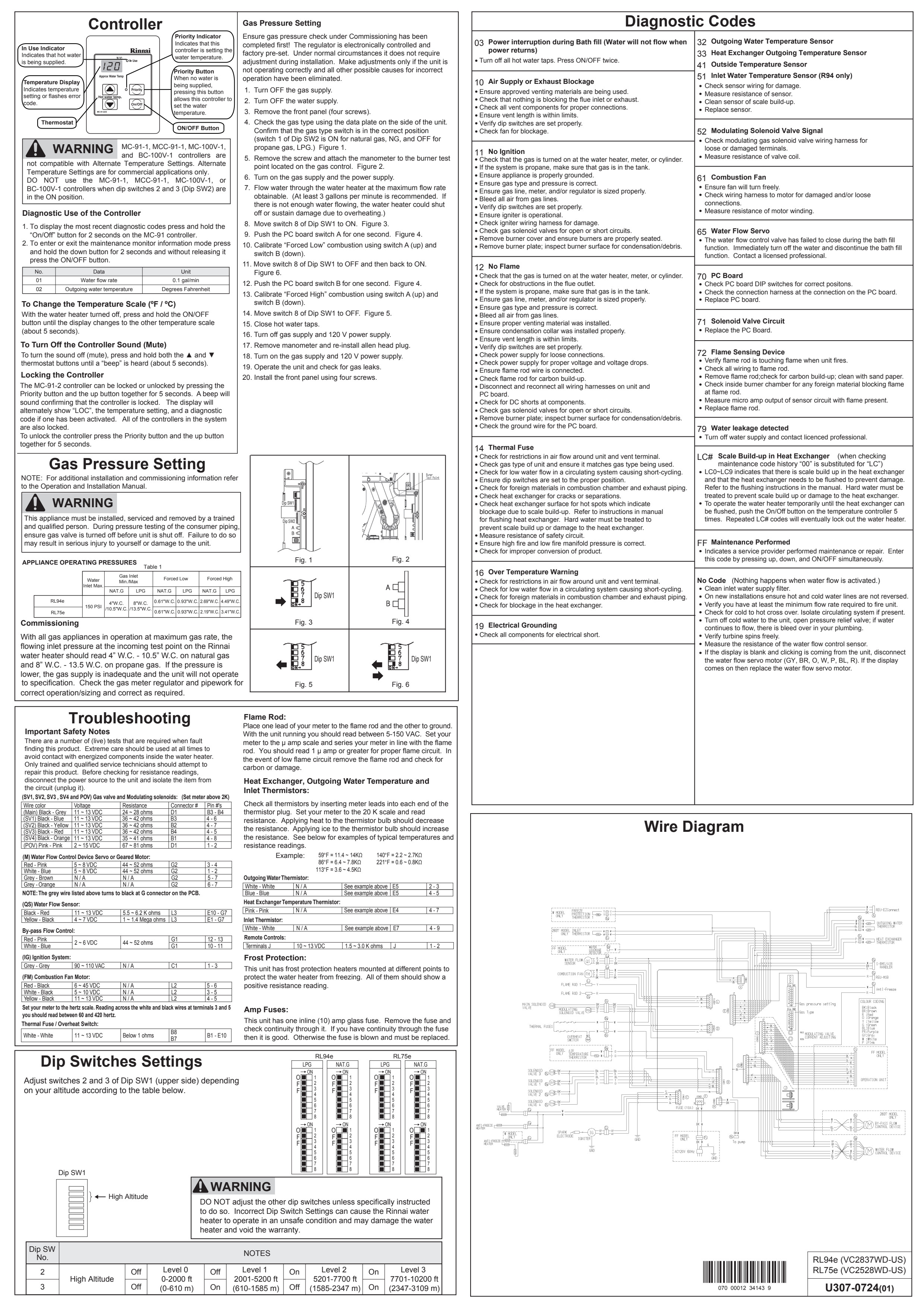

Installation Manual: VC Series Tankless Water Heater (HE+) - RL75_RL94_RLX94PDF 5 MB
Brochure Circ Logic Guide - CU/RU/RL/RLXPDF 2 MB
TANKLESS RACK INSTALLATION MANUAL EnglishPDF 8 MB Installation Manual@small.jpg)
Tankless Rack System (TRS) Installation Manual EnglishPDF 7 MB
Venting Manual: Ubbink Non-Condensing ConcentricPDF 4 MB -
Water_Heating_Solutions_Consumer_Brochure.pdfPDF 26 MB
Water_Heating_Solutions_Trade_Brochure.pdfPDF 33 MB
GROUND WATER TEMPERATURE MAP UPDATE RL94I_RL94EPDF 342 KB -
MSB-SP Specification Sheet.pdfPDF 632 KB

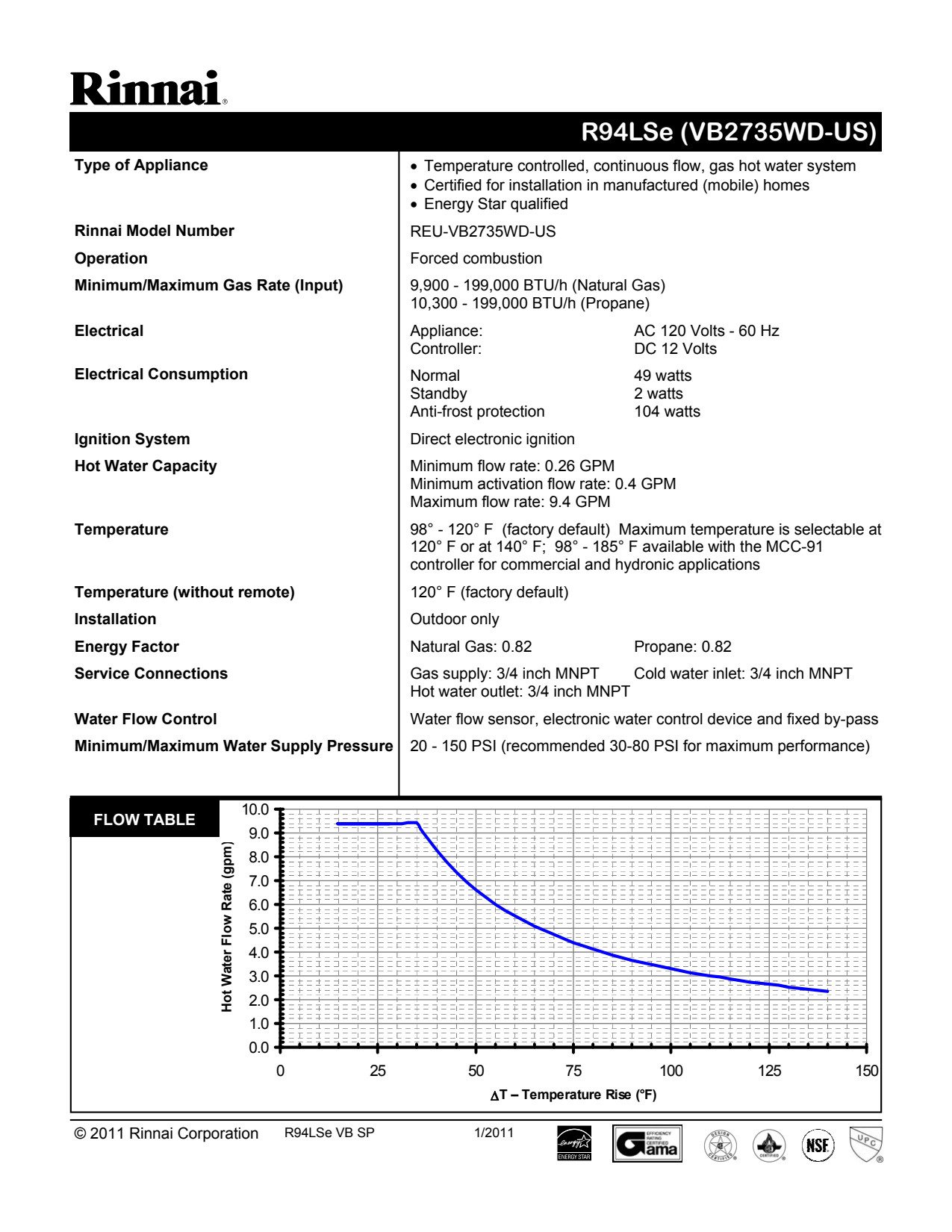

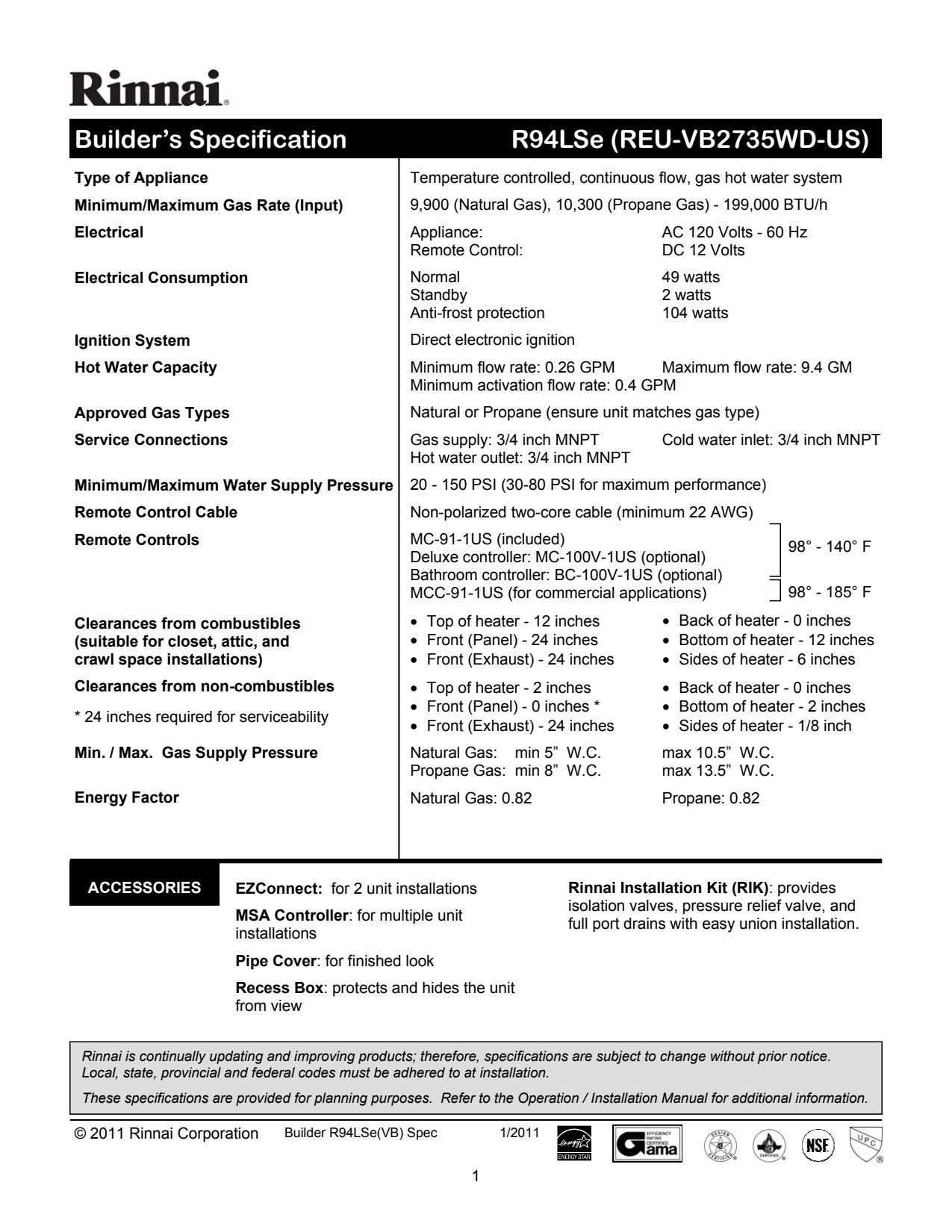

Specification SheetsPDF 342 KB SP@small.jpg)

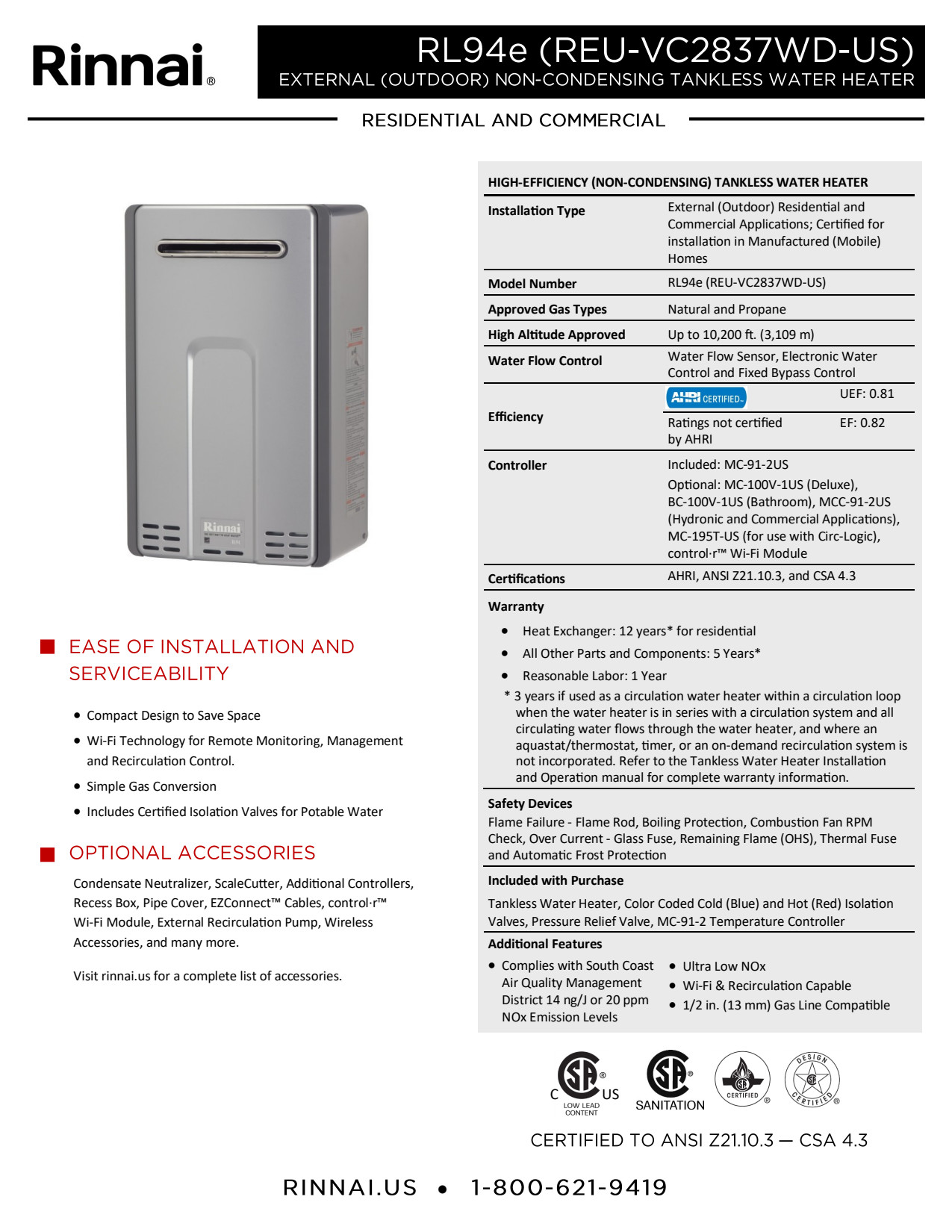

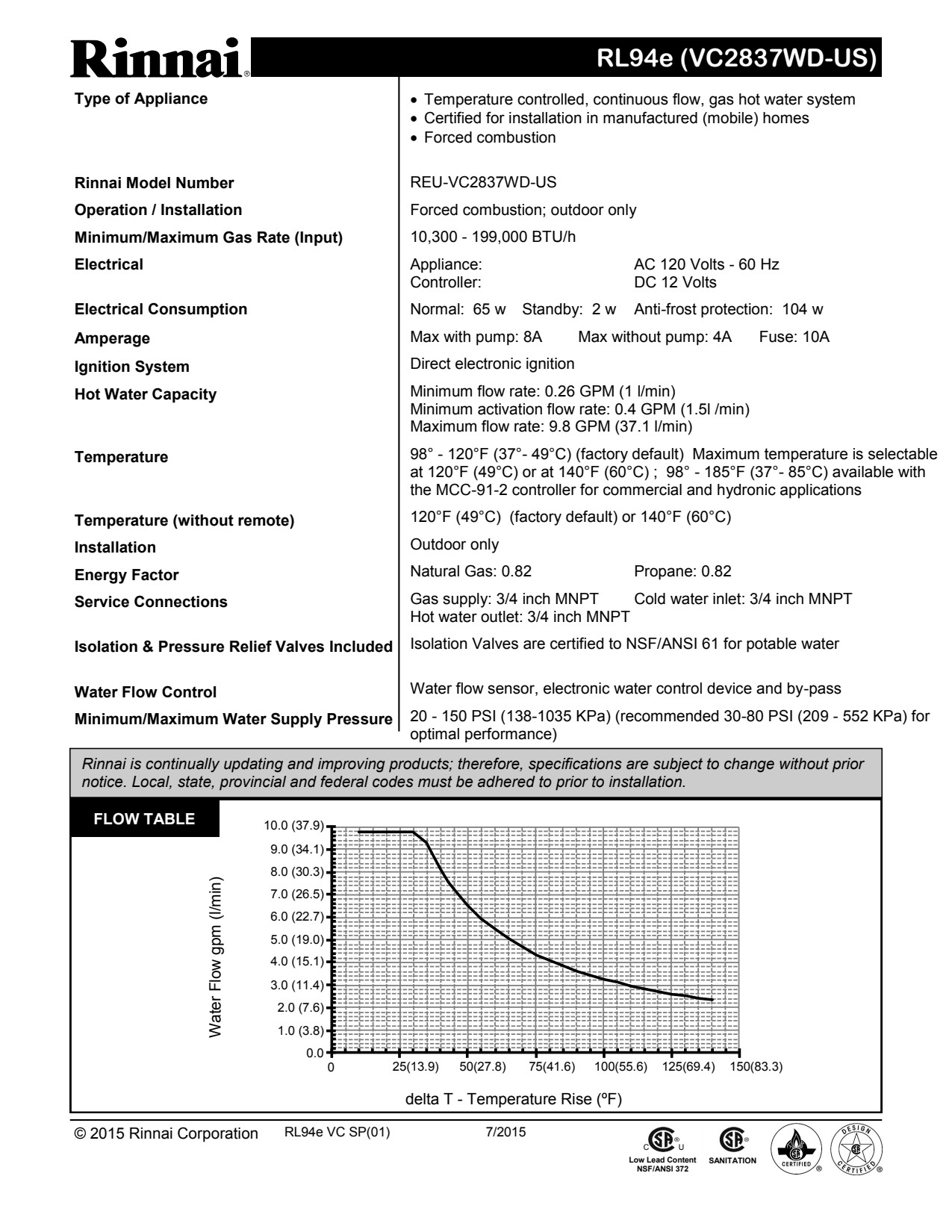

Spec Sheet: HE+ Tankless Water Heater English - RL94e ModelsPDF 588 KB@small.jpg)
Tankless Rack System Specification Sheet EnglishPDF 4 MB
TRS SPEC SHEET EnglishPDF 4 MB -
Tech Bulletin No 026: Outdoor Terminal Clearances (TB-026)PDF 232 KB
Updated Terminal Clearances for Outdoor Water Heaters - TB 108 - VA ModelsPDF 232 KB
Tech Bulletin No 121: Activation Flow Rates at Higher Temperatures (TB-121)PDF 308 KB
Tech Bulletin No 130: Battery Backup for Tankless Water Heaters and Home Heating Products (TB-130)PDF 285 KB
Tech Bulletin No 131: Use of Circ-Logic for Pump Applications greater than 120 VAC (TB-131)PDF 387 KB
Tech Bulletin No 150: Understanding EF and UEF (TB-150)PDF 197 KB
Tech Bulletin No 172: Rinnai Natural Gas-Hydrogen Fuel Mixture Products (TB-172)PDF 279 KB
MSDS Higher Vinegar Concentration for Descaling Technical BulletinsPDF 417 KB -
@small.jpg)
TWH Troubleshooting Technical Data SheetPDF 2 MB
TWH Troubleshooting Technical Data Sheet FrenchPDF 2 MB
TWH Troubleshooting Technical Data Sheet SpanishPDF 2 MB -
System Design Drawing: Rinnai Tankless Single Unit with Backup Storage (CAD format)DWG 320 KB
System Design Drawing: Rinnai Tankless Single Unit with Backup StoragePDF 803 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump Circulation (CAD format)DWG 337 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump CirculationPDF 789 KB
System Design Drawing: Rinnai Tankless Single Unit with Circulation (CAD format)DWG 403 KB
System Design Drawing: Rinnai Tankless Single Unit with CirculationPDF 718 KB
System Design Drawing: Rinnai Tankless Single Unit with Circ Logic Pump (CAD format)DWG 223 KB
System Design Drawing: Rinnai Tankless Single Unit with Circ Logic PumpPDF 785 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup Storage (CAD format)DWG 432 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup StoragePDF 818 KB
WH-2-C.pdfPDF 720 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump Circulation (CAD format)DWG 689 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump CirculationPDF 723 KB
System Design Drawing: Rinnai Tankless Two Unit with Circulation (CAD format)DWG 688 KB
System Design Drawing: Rinnai Tankless Two Unit with CirculationPDF 725 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Circ Logic Pump (CAD format)DWG 334 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Circ Logic PumpPDF 802 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup Storage (CAD format)DWG 544 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup StoragePDF 833 KB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump Circulation (CAD format)DWG 0 MB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump CirculationPDF 732 KB
System Design Drawing: Rinnai Tankless Three Unit with Circulation (CAD format)DWG 902 KB
System Design Drawing: Rinnai Tankless Three Unit with CirculationPDF 733 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Circ Logic Pump (CAD format)DWG 447 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Circ Logic PumpPDF 821 KB
System Design Drawing: Rinnai Tankless Single Unit with Air Handler (CAD format)DWG 435 KB
System Design Drawing: Rinnai Tankless Single Unit with Air HandlerPDF 719 KB
System Design Drawing: Non-Condensing Tankless Single Unit with Freeze Protection (CAD format)DWG 247 KB
System Design Drawing: Non-Condensing Tankless Single Unit with Freeze ProtectionPDF 711 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat Exchanger (CAD format)DWG 419 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat ExchangerPDF 718 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1 (CAD format)DWG 427 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1PDF 727 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2 (CAD format)DWG 447 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2PDF 725 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating (CAD format)DWG 423 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic HeatingPDF 720 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Freeze Protection (CAD format)DWG 386 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Freeze ProtectionPDF 718 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1 (CAD format)DWG 766 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1PDF 736 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2 (CAD format)DWG 748 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2PDF 732 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Freeze Protection (CAD format)DWG 524 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Freeze ProtectionPDF 731 KB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1PDF 741 KB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2PDF 742 KB -
@small.jpg)
Warranty VC (HE+ Series)PDF 335 KB
Warrantyi
| Warranty - Standard for Residential | 12 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
|---|---|
| Warranty - Standard for Commercial | 5 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
iWarranty information is available in the Installation & Owner Manual.
