Q85SN Q-Series Model Series
Select a thumbnail to view a larger version

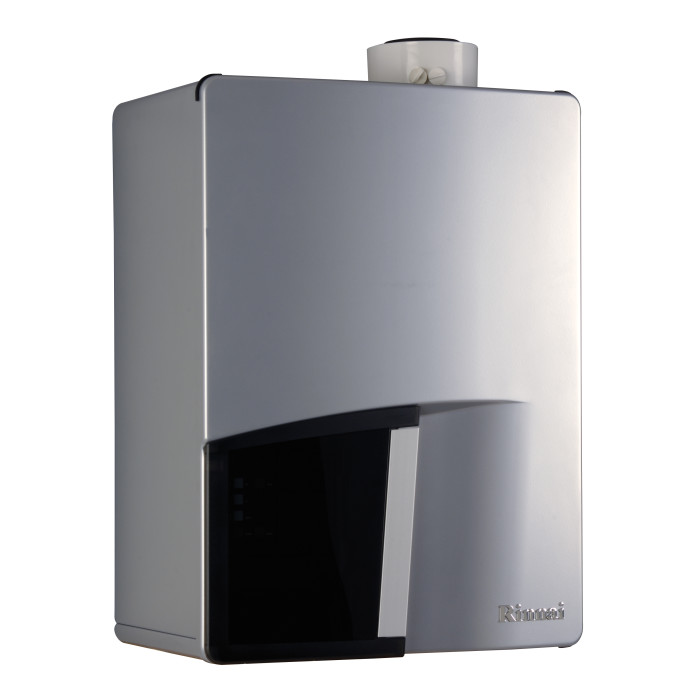

Rinnai Q85SN natural gas condensing boiler offers unparalleled comfort and efficiency along with ease of installation and serviceability making it ideal for use in homes or light commercial applications where whole house heating is needed.
- Warranty
- 17,000 BTU / (5.0 kW) (minimum)
N/A (maximum)
Specifications
| Manufacturer Trade Model Number - U.S. | Q85SN |
|---|---|
| Product Depth | 15.2 in / (385 mm) |
| Product Height | 31.4 in / (795 mm) |
| Product Width | 19.7 in / (500 mm) |
| Product Weight | 110 lb / (50 kg) |
| Gas Type | Natural Gas |
| Residential ENERGY STAR® | Yes |
| SCAQMD Approved | Ultra Low NOx |
| Central Heating Capacity | 85,000 BTU / (24.9 kW) |
Documentation
-

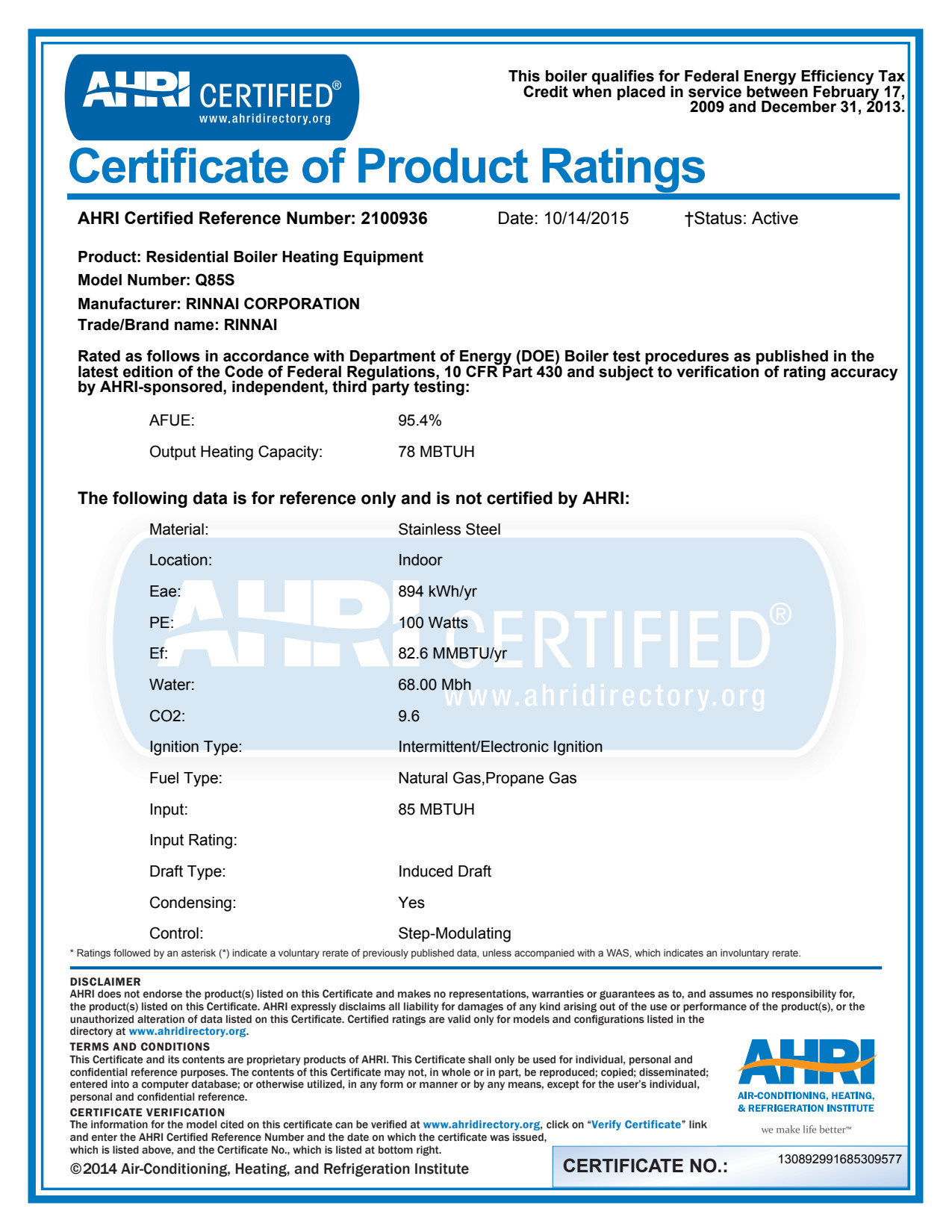

AHRICertificate-Q85SPDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2010.pdfPDF 821 KB
Manufacturer's_Certification_Statement_-_Rinnai_2011.pdfPDF 55 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -
Q Series Conversional Manual Natural Gas EnglishPDF 1 MB -
Energy Guide - Q85SPDF 589 KB -
800000010-Boiler Installation Manual Q-Series.pdfPDF 3 MB
800000021-Boiler Installation Manual Q-Series ENG and FR.pdfPDF 5 MB
User Manual: Q-Series Boiler (English and French)PDF 1 MB
Supplemental Manual: RS100 Boiler Controller ApplicationsPDF 650 KB
8U514009 Installation manual Q-Series V0117_01.pdfPDF 3 MB
8U524001 - Boiler User Manual Q-Series EnglishPDF 650 KB
High Efficiency Condensing Gas Boiler Installation And Operational Manual FrenchPDF 14 MB
Installation Comissioning Service LogPDF 41 KB
Venting Manual: Ubbink Condensing ConcentricPDF 1 MB -
No documents found for this document type.
-

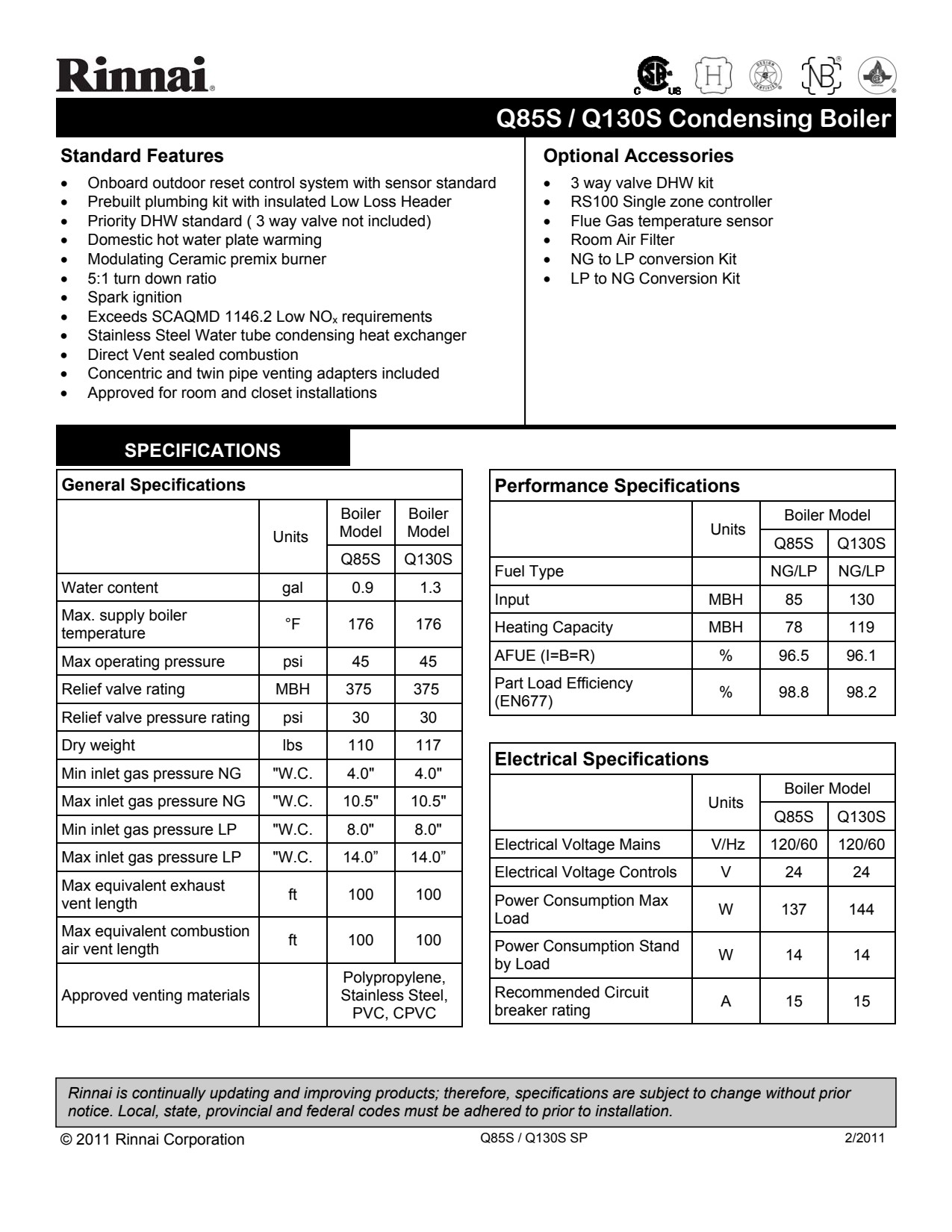

Q85S, Q130S Specification Sheet EnglishPDF 111 KB

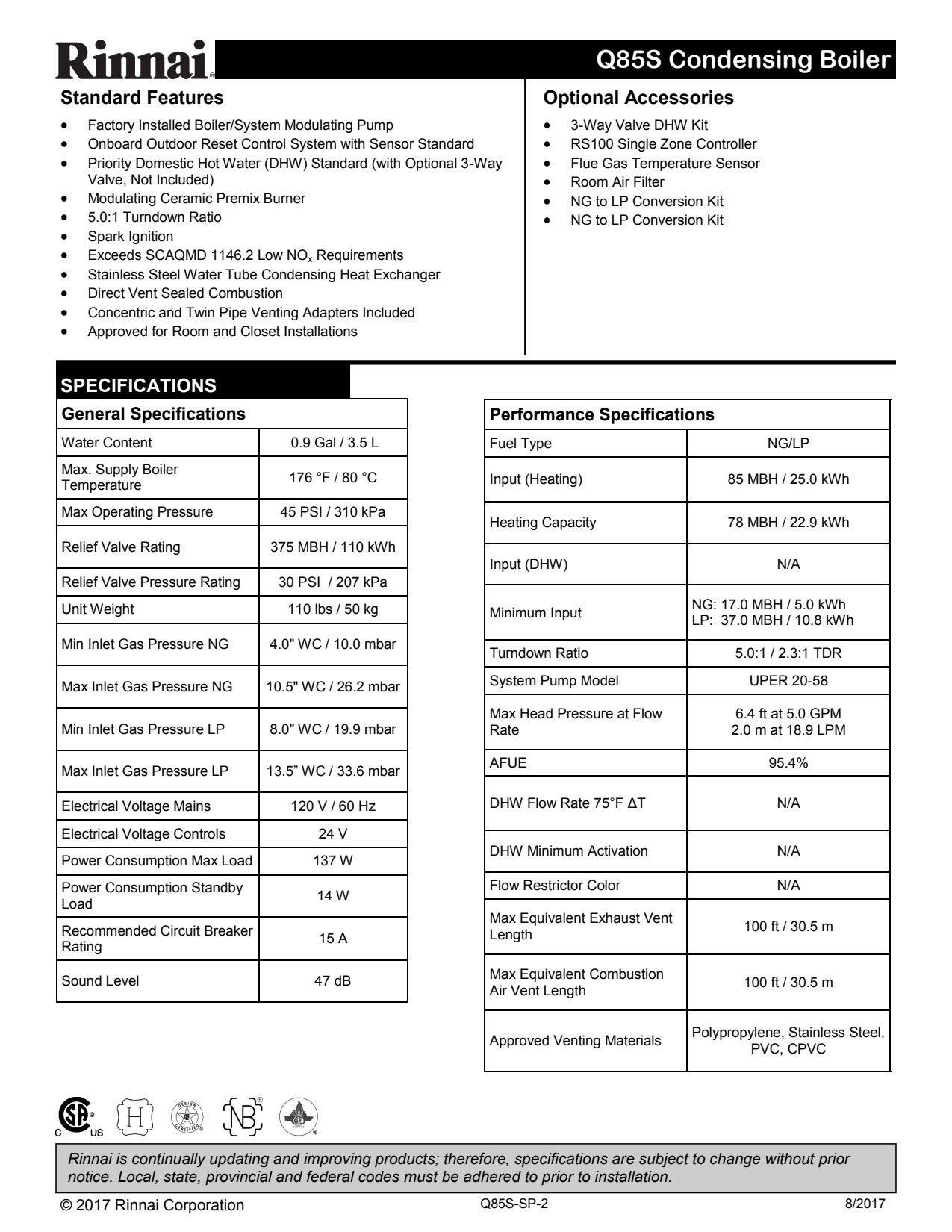

Condensing Boiler Spec Sheet English Q85SPDF 441 KB
Spec Sheet: Side Mount Low Loss Header Kit- Q85S_Q130SPDF 59 KB -
Tech Bulletin No 061: Data plate for boiler gas type conversion (TB-061)PDF 244 KB
Tech Bulletin No 063: Cleaners and Freeze Protection for Boilers (TB-063)PDF 90 KB
Tech Bulletin No 064: Maximum Wall Thickness for Condensing Terminations (TB-064)PDF 293 KB
Tech Bulletin No 065: Water Softener for Boilers (TB-065)PDF 18 KB
Tech Bulletin No 067: Boiler Manual Revisions (TB-067)PDF 866 KB
Tech Bulletin No 068: Boiler Service Notification (TB-068)PDF 18 KB
Tech Bulletin No 070: Boiler PVC Venting (TB-070)PDF 85 KB
Tech Bulletin No 071: Using a Boiler with a Snow Melt System (TB-071)PDF 17 KB
Technical Bulletin 073 Condensing Termination Rain Ingress EnglishPDF 92 KB
Tech Bulletin No 076: Boiler System Pump Power Connection (TB-076)PDF 17 KB
Technical Bulletin 079 Rinnai Ubbink Venting EnglishPDF 1 MB
Technical Bulletin 080 Termination Diverter Kit EnglishPDF 47 KB
Technical Bulletin 083 Pump Commissioning Procedure (Boilers) EnglishPDF 133 KB
Tech Bulletin No 083: Pump Commissioning Procedure (Boilers) (TB-083)PDF 133 KB
Tech Bulletin No 085: Dirt Trap for Boilers (TB-085)PDF 23 KB
Tech Bulletin No 091: Boiler Wire Diagrams (TB-091)PDF 771 KB
Tech Bulletin No 094: Centrotherm Venting for Boilers (TB-094)PDF 71 KB
Tech Bulletin No 095: Boiler Blocking Code bl05 (TB-095)PDF 296 KB
Tech Bulletin No 096: Use Mineral Oil in the Boiler Condensate Trap (TB-096)PDF 31 KB
Tech Bulletin No 102: Boiler Commissioning (TB-102)PDF 376 KB
Tech Bulletin No 104: Live Fire Testing for Boilers (TB-104)PDF 211 KB
Tech Bulletin No 110: Boiler Exhaust Vent Hanger and Support (TB-110)PDF 436 KB
Tech Bulletin No 118: Bypassing De-Aeration Program on Rinnai Boilers (TB-118)PDF 1 MB
Tech Bulletin No 126: Duravent Approval for Rinnai Boilers (TB-126)PDF 237 KB
Tech Bulletin No 127: Boiler Certification Announcement (TB-127)PDF 297 KB
Tech Bulletin No 136: 4 Inch PVC CPVC Approved for Rinnai Boilers (TB-136)PDF 245 KB
Tech Bulletin No 137: Combining Combustion Air and Exhaust into a Single Pipe is Prohibited (TB-137)PDF 317 KB
Z-Flex Venting for BoilersPDF 202 KB -
Boilers WarrantyPDF 287 KB
M Series Boiler Warranty EnglishPDF 290 KB
