IP199199C I-SERIES_Plus_C Model Series
Select a thumbnail to view a larger version

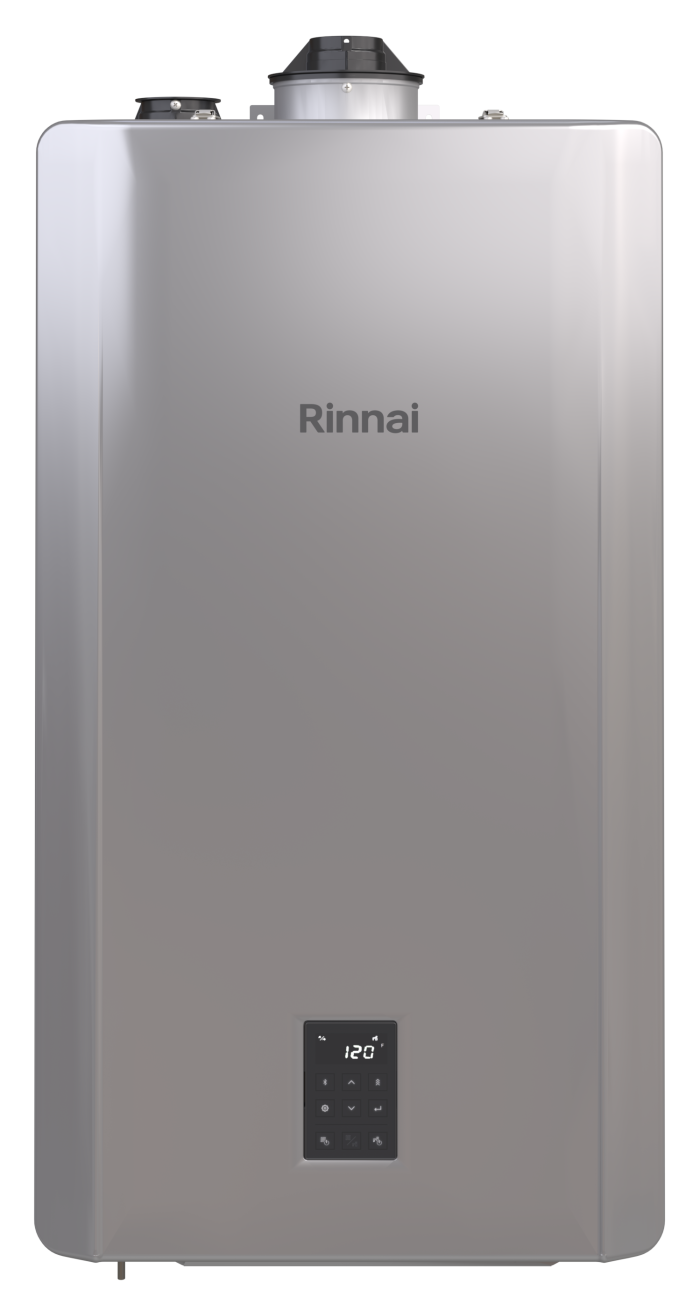

I-SERIES Plus™ 199k BTU Combi Condensing Gas Boilers offers unmatched value and performance with an expanded product line.
- Warranty 12 yrs / 5 yrs / 1 yrs
- 15000 BTU / (4.39 kW) (minimum)
199,000 BTU / (58.3 kW) (maximum)
- Available Sept 2024
Specifications
| Manufacturer Trade Model Number - U.S. | IP199199C |
|---|---|
| Product Depth | 15.48 inch / (393.19 mm) |
| Product Height | 45.3 inch / (1150.62 mm) |
| Product Width | 19.45 inch / (494.63 mm) |
| Product Weight | 64 lb / (29.09 kg) |
| Gas Type | NG or LP |
| Installation Type | Available Sept 2024 |
| Recirculation Capable | Yes |
| Residential ENERGY STAR® | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 9.8GPM |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
I-Series Plus 175K BTU and Larger Condensing Boiler Gas Conversion ManualPDF 3 MB -

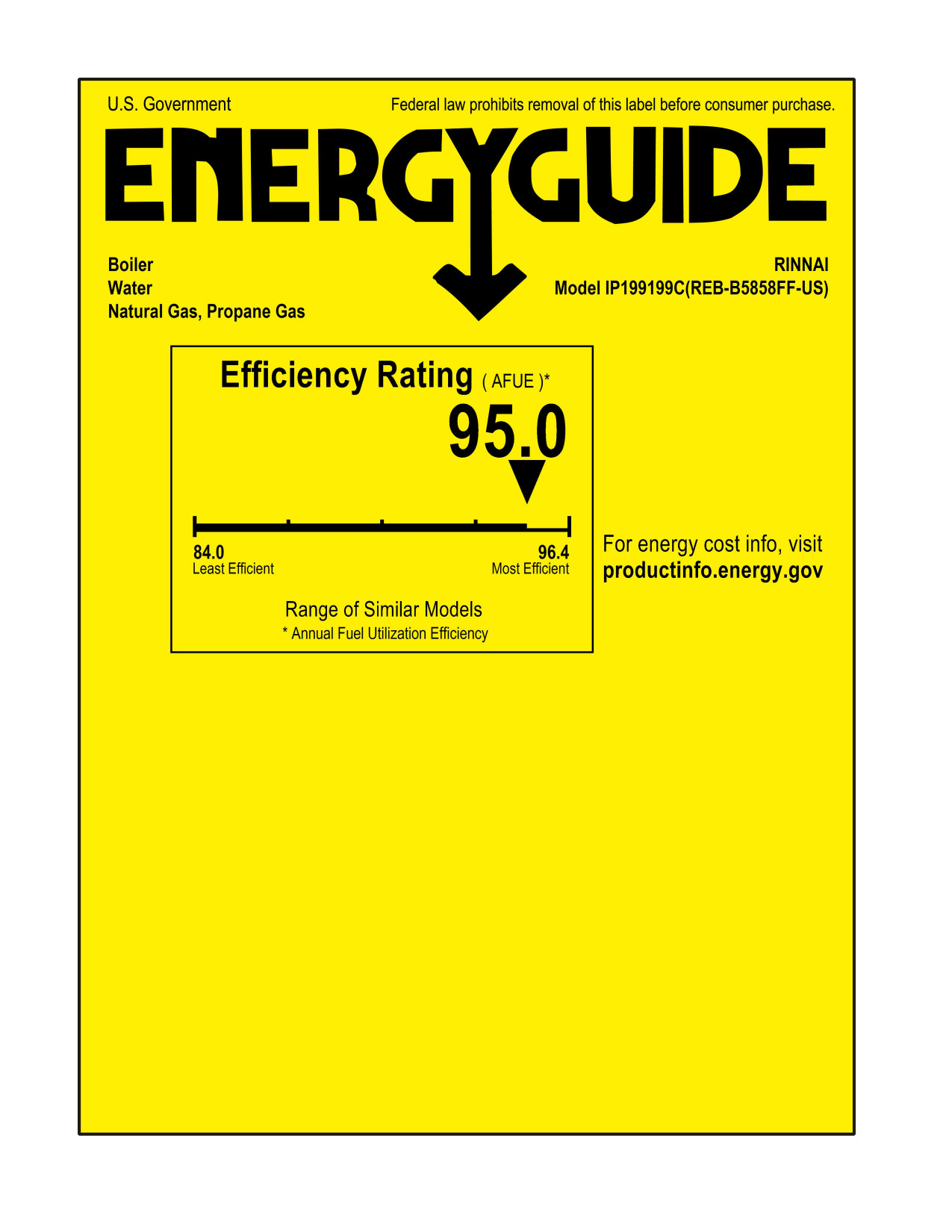

IP199199C - Energy GuidePDF 608 KB -

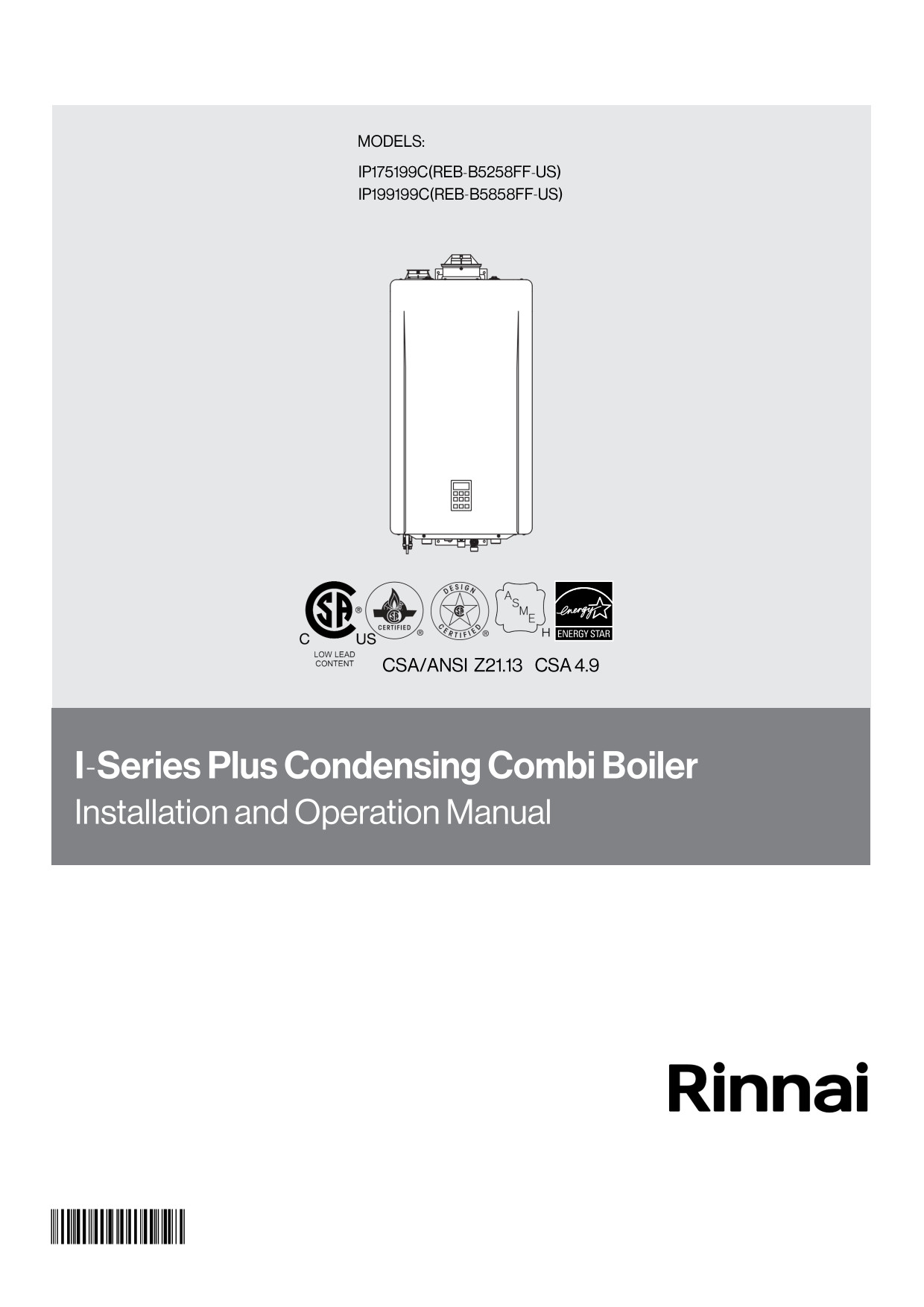

I-Series Plus 175K BTU and Larger Condensing Combi Boiler Owners Installation and Operation Manual EnglishPDF 15 MB

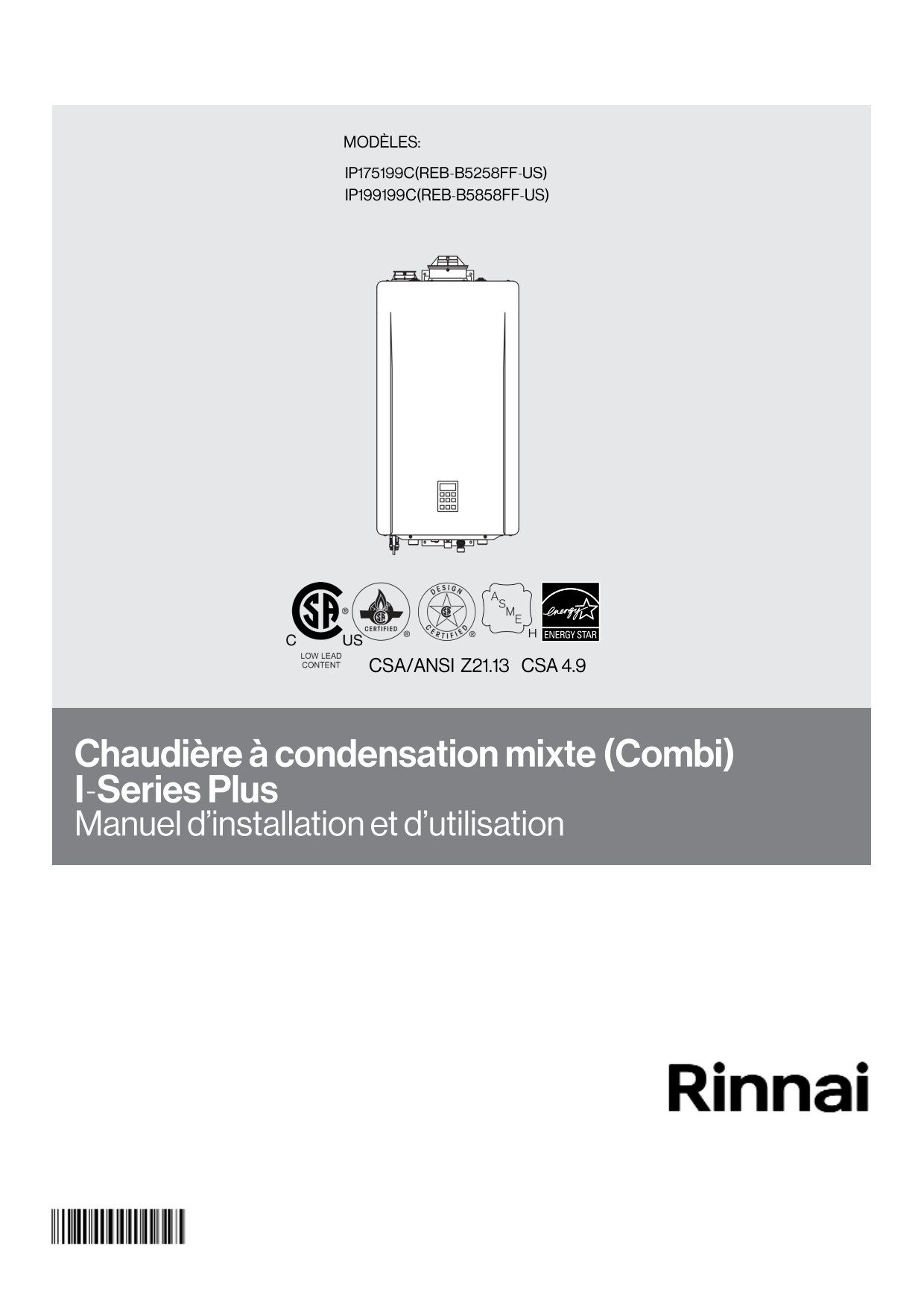

I-Series Plus 175K BTU and Larger Condensing Combi Boiler Owners Installation and Operation Manual-FrenchPDF 13 MB
I-Series Plus 175K BTU and Larger Condensing Boiler Owners Installation and Operation User Manual EnglishPDF 3 MB I-Series Plus Condensing Boiler User Manual-French@small.jpg)
I-Series Plus Condensing Boiler User Manual Owners Installation and Operation User Manual FrenchPDF 3 MB -
US I-SERIES Plus 4-page Brochure.pdfPDF 1 MB@small.jpg)
US I-SERIES Plus Brochure (1).pdfPDF 10 MB -

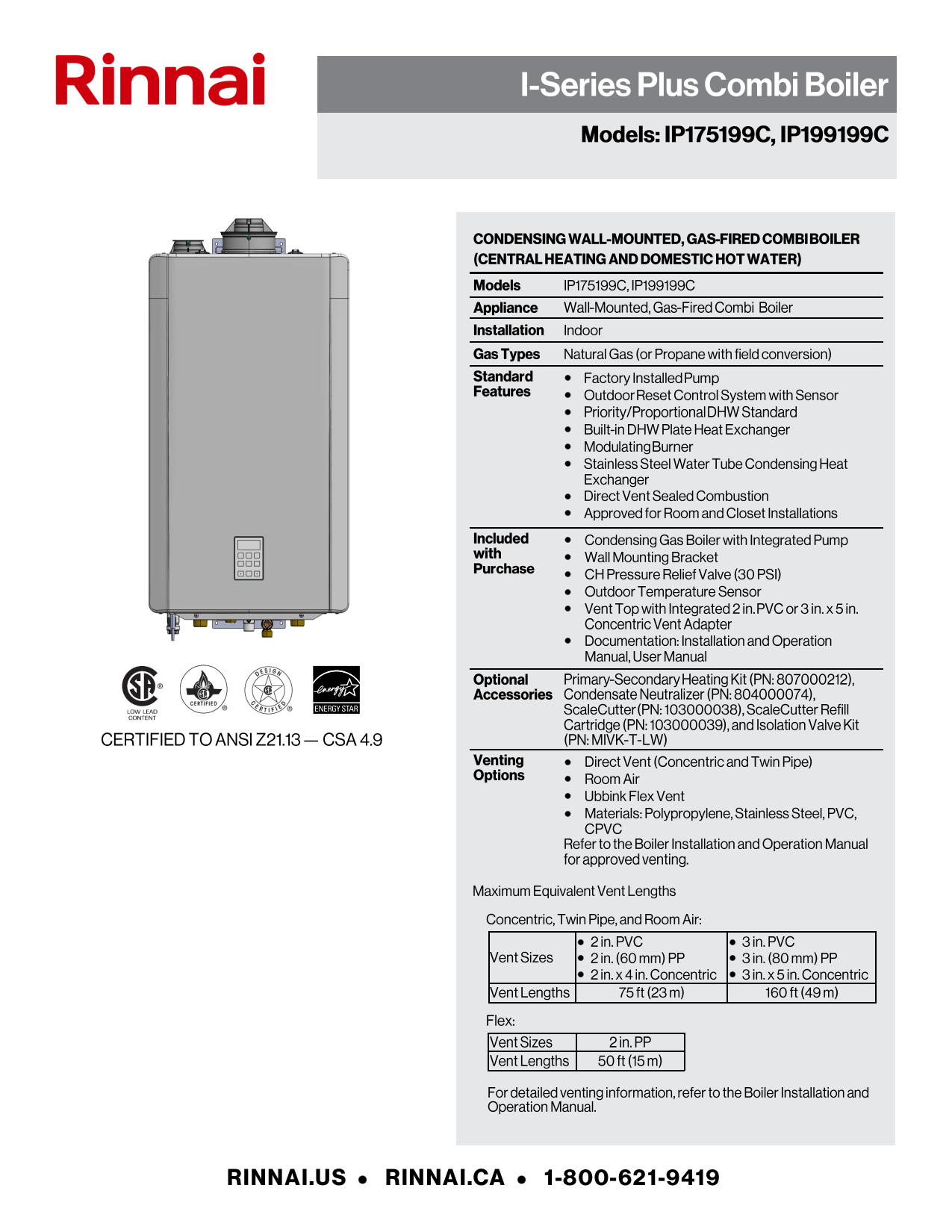

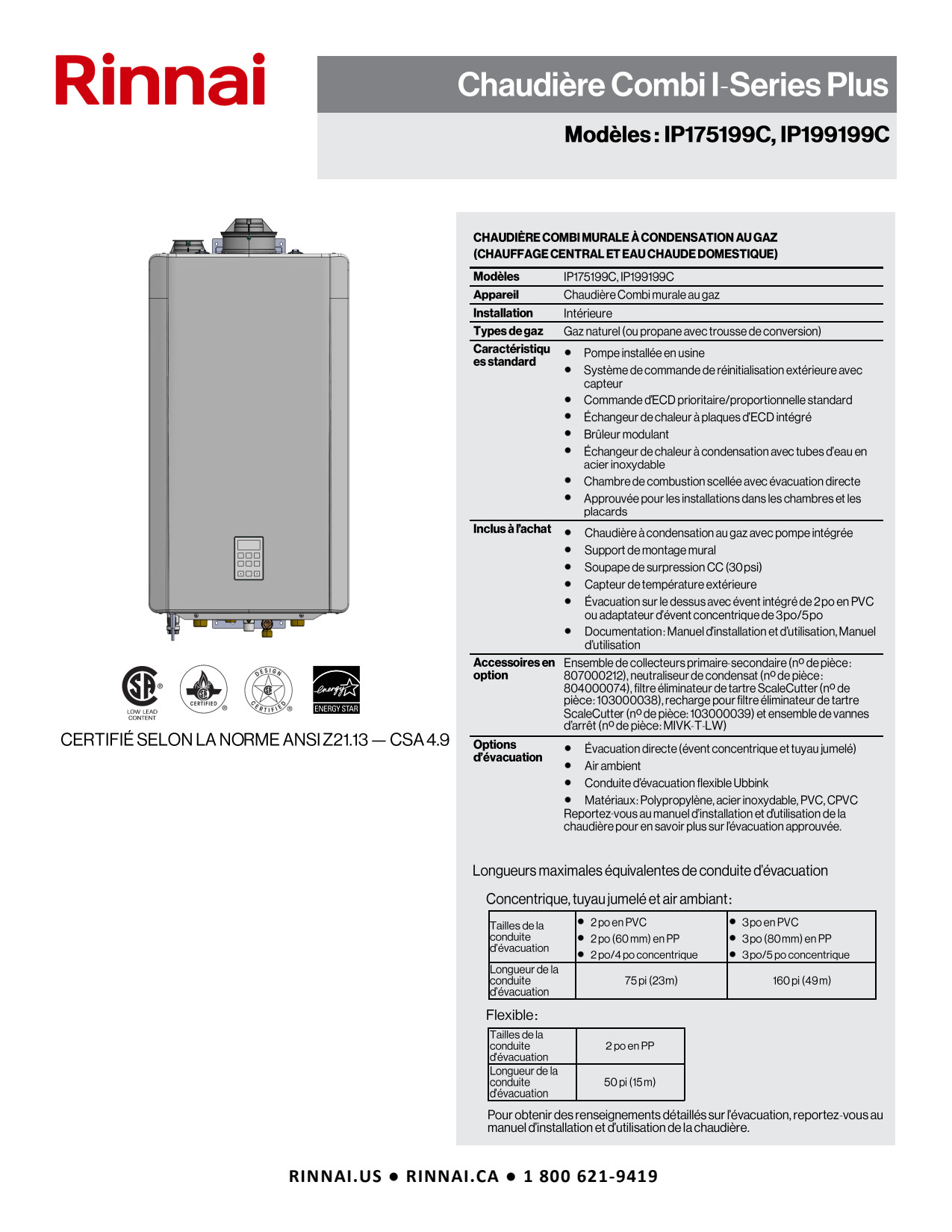

I-Series Plus Valmex Combi Specification Sheet EnglishPDF 1 MB -
 I-Series Plus 150K and 175K BTU Condensing Boiler Check Sheet@small.jpg)
I-Series Plus 150K and 175K BTU Condensing Boiler Check Technical Data Sheet EnglishPDF 2 MB@small.jpg)
I-Series Plus 175K BTU and Larger Condensing Combi Boiler Technical Data SheetPDF 2 MB
Gas Control Orifice Technical Data InstructionsPDF 290 KB
Warrantyi
| Warranty - Standard for Residential | 12 yrs / 5 yrs / 1 yrs |
|---|---|
| Warranty - Standard for Commercial | 5 yrs / 5 yrs / 1 yrs |
iWarranty information is available in the Installation & Owner Manual.
