E50CRN E Model Series
Select a thumbnail to view a larger version

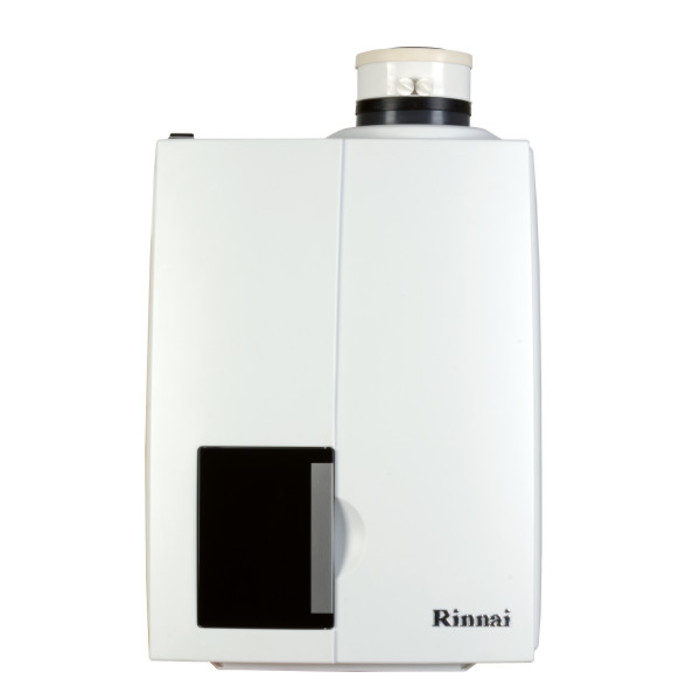

Rinnai E50CRN Residential Condensing combination, natural gas boiler is compact, wall mounted, and designed for easy installation as a retro-fit to traditional less efficient boilers and can deliver whole house heating and domestic hot water heating for homes with up to two bathrooms.
- 13,600 BTU (minimum)
85,000 BTU (maximum)
- Warranty
Specifications
| Product Depth | 15.6 in / (395 mm) |
|---|---|
| Product Height | 32.8 in / (835 mm) |
| Product Width | 19.7 in / (500 mm) |
| Product Weight | 81 lb / (37 kg) |
| Gas Type | Natural Gas |
| Residential ENERGY STAR® | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 2.1 GPM / (7.9 l/min) |
| SCAQMD Approved | Ultra Low NOx |
| Central Heating Capacity | 50,000 BTU / (14.6 kW) |
Documentation
-

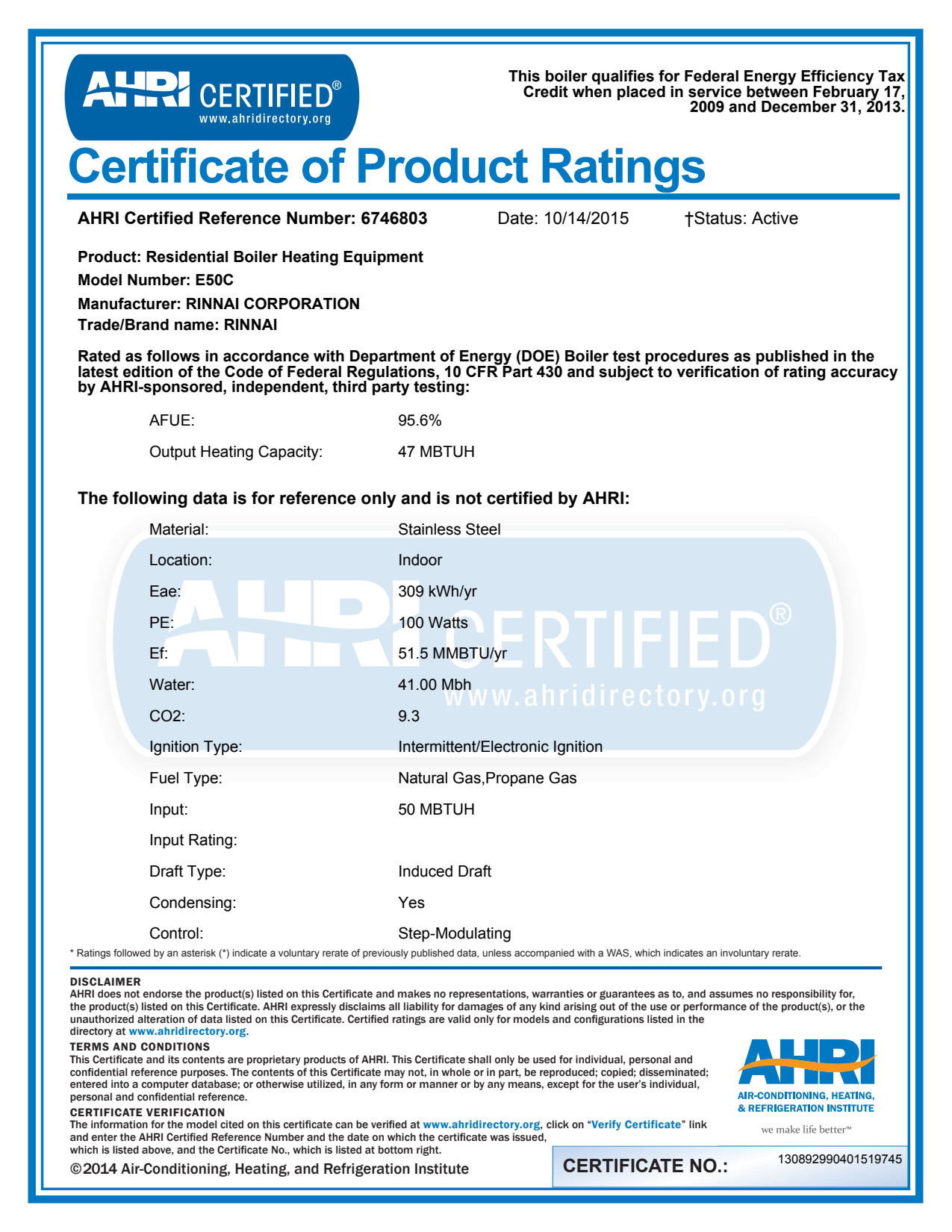

AHRICertificate-E50CPDF 222 KBManufacturer's_Certification_Statement_-_Rinnai_2012-2013PDF 63 KBManufacturer's_Certification_Statement_-_Rinnai_2014PDF 203 KBManufacturer's_Certification_Statement_-_Rinnai_2015-2016PDF 327 KB
-

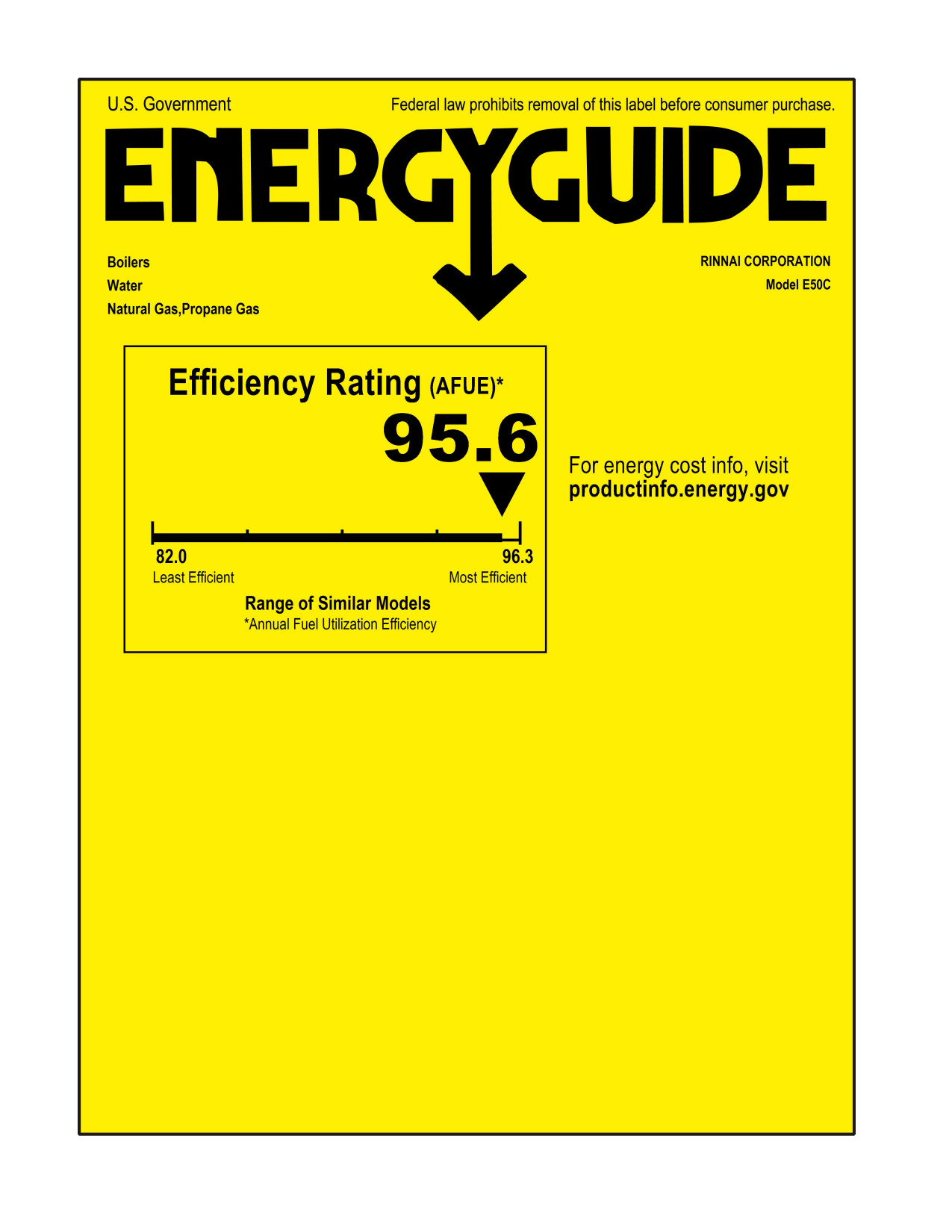

AHRIEnergyGuide-E50CPDF 591 KB
-

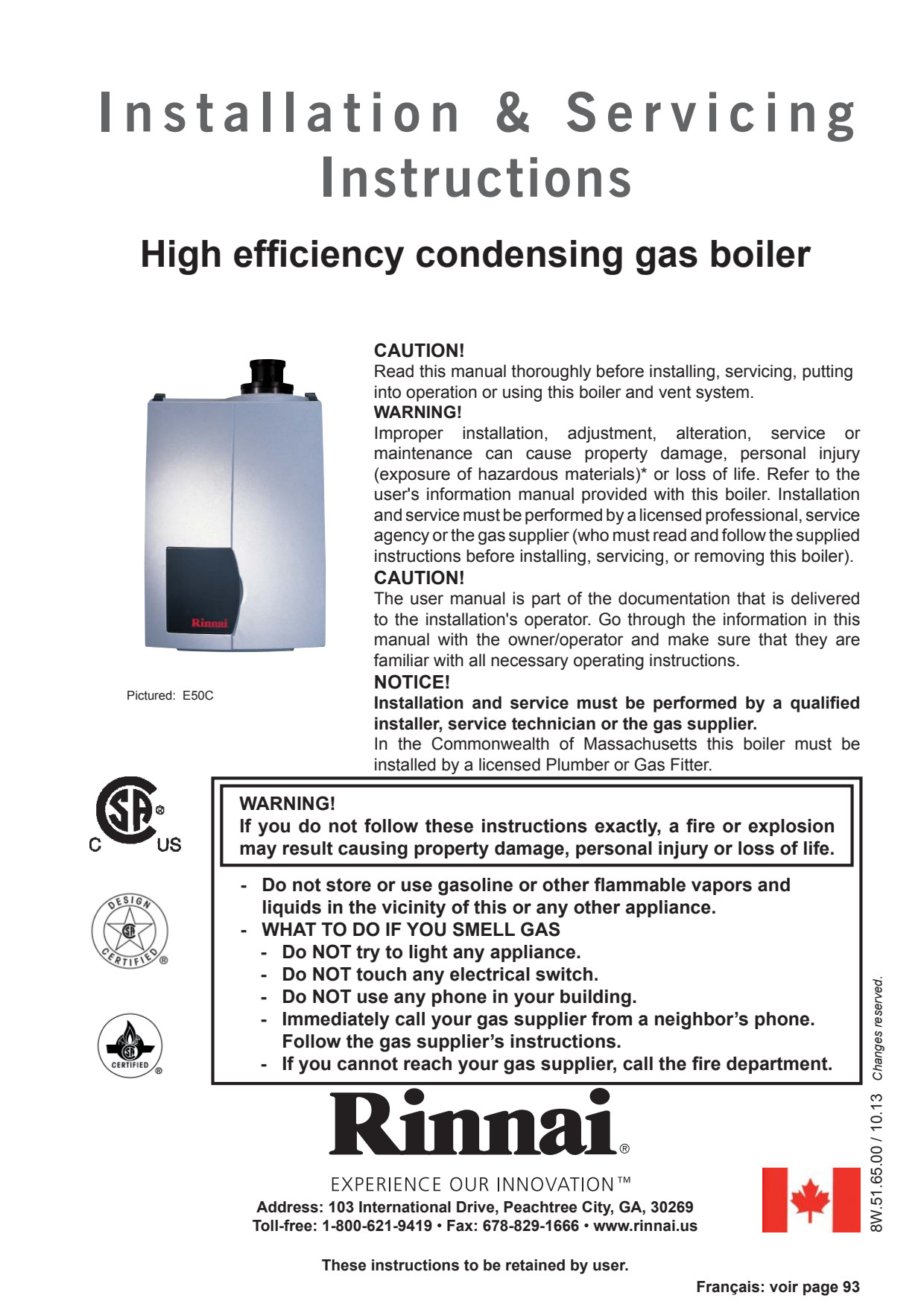

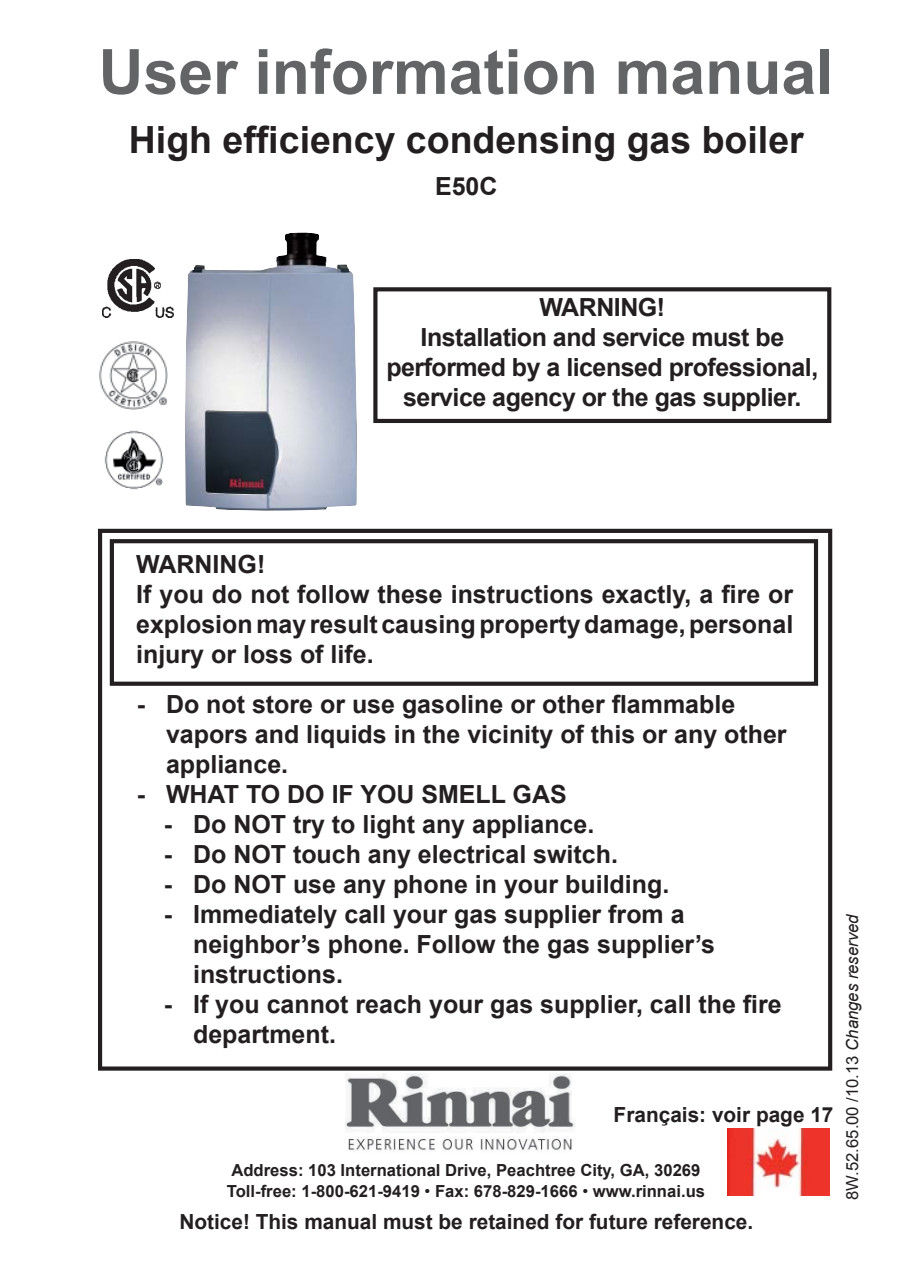

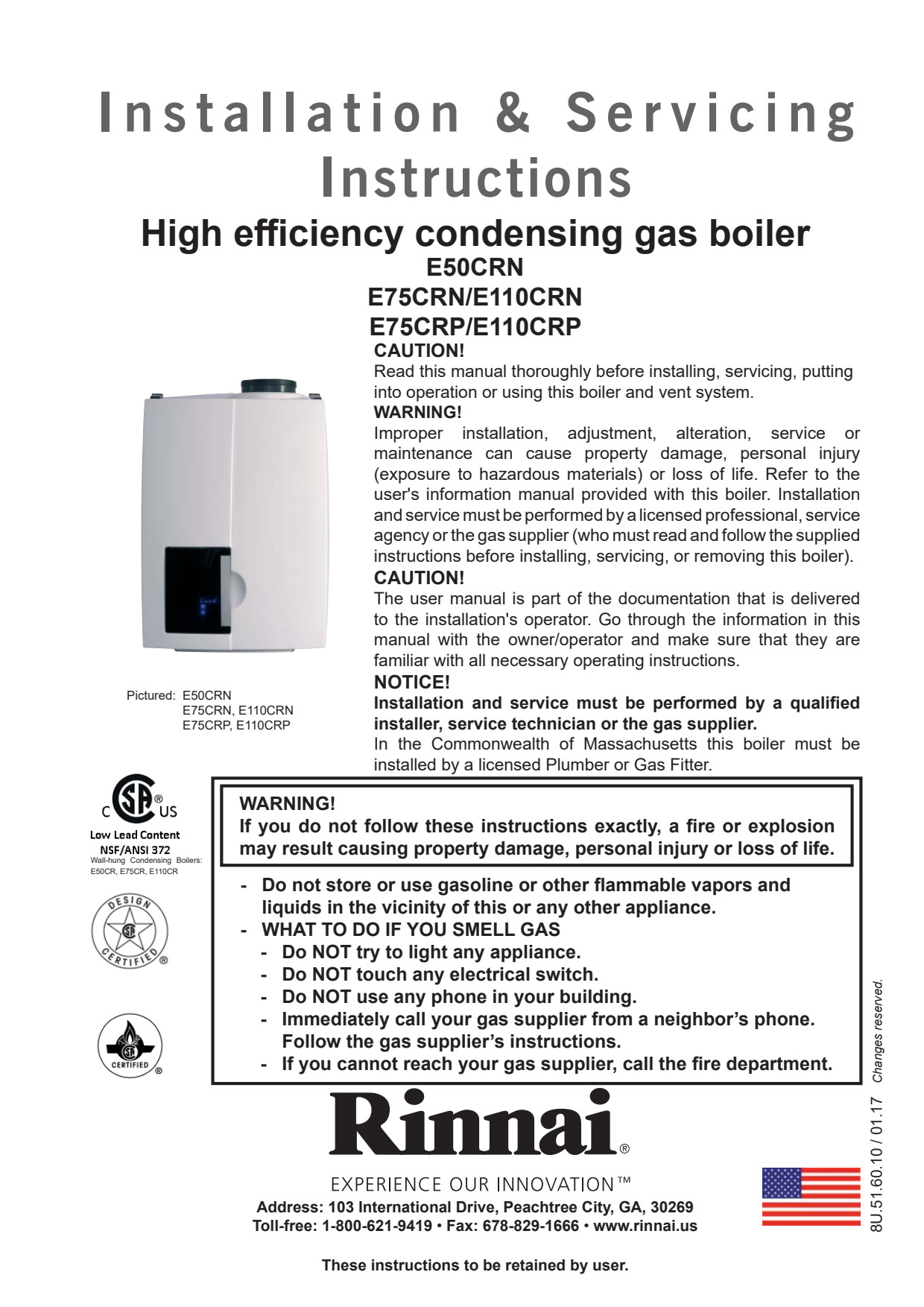

800000048-Boiler User Manual E50C ENG and FRPDF 345 KBBoiler Installation Manual E50CPDF 3 MBBoiler Installation Manual E50C ENG and FREPDF 6 MBE Series High Efficiency Condensing Gas Boiler Installation And Operational Manual EnglishPDF 4 MB
-

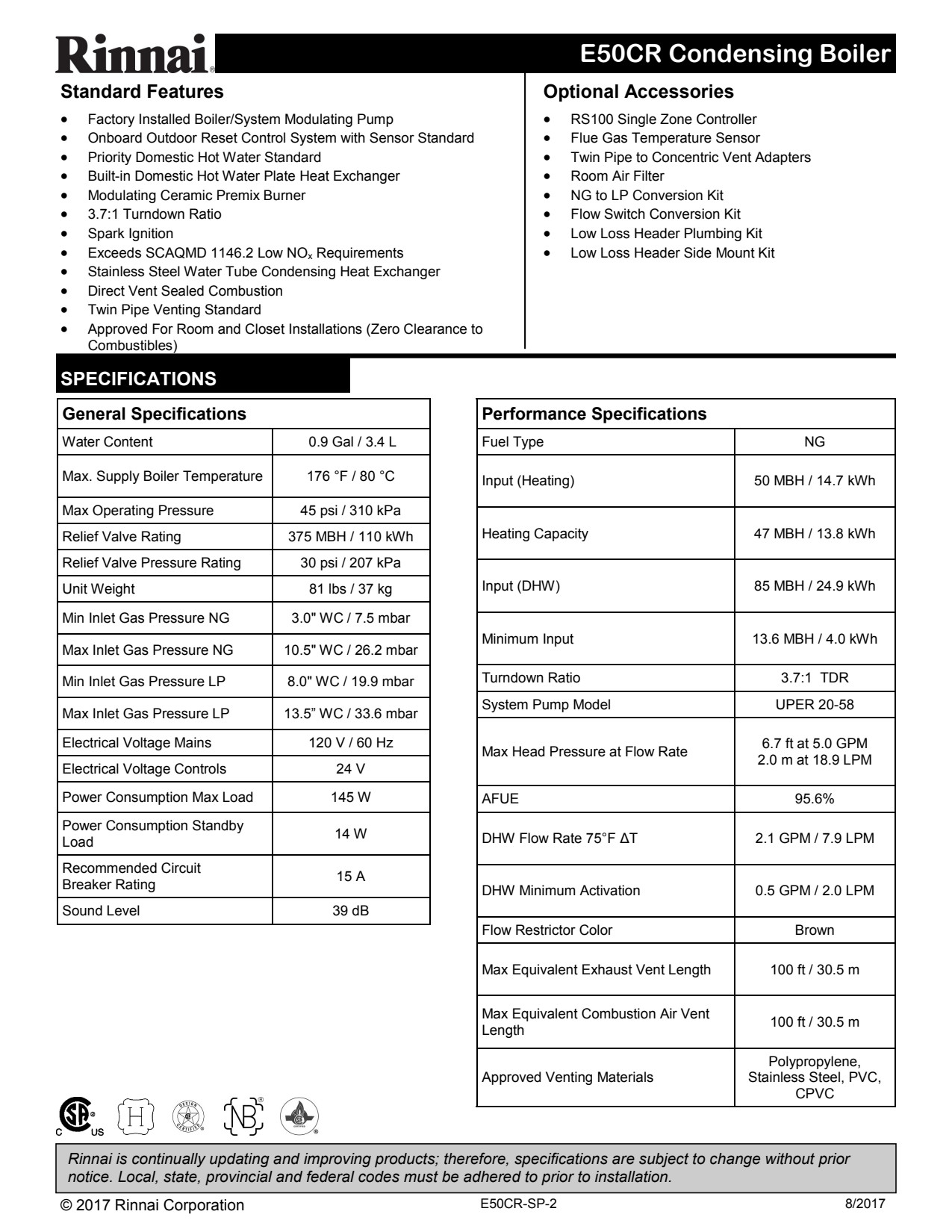

E50CR-SPPDF 363 KB
-

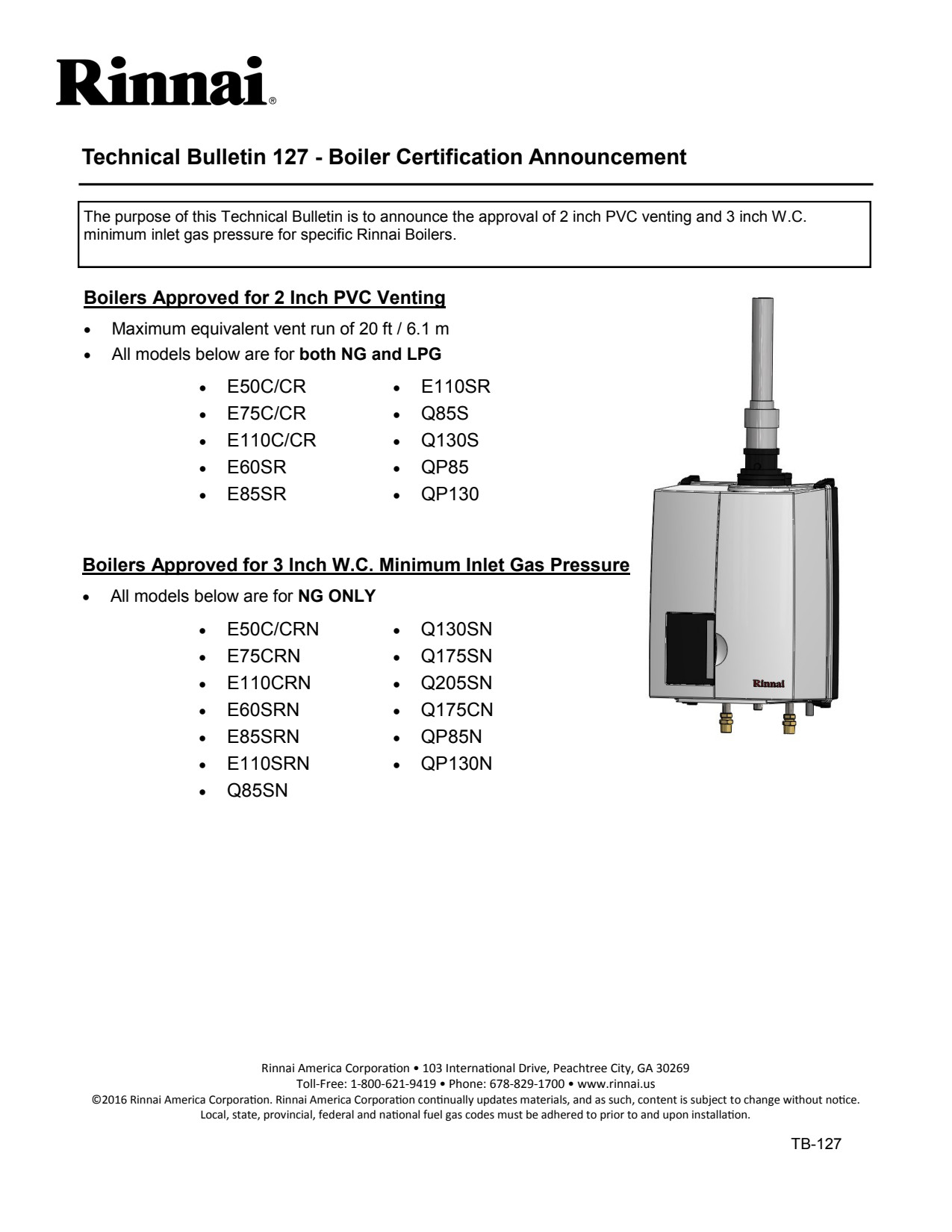

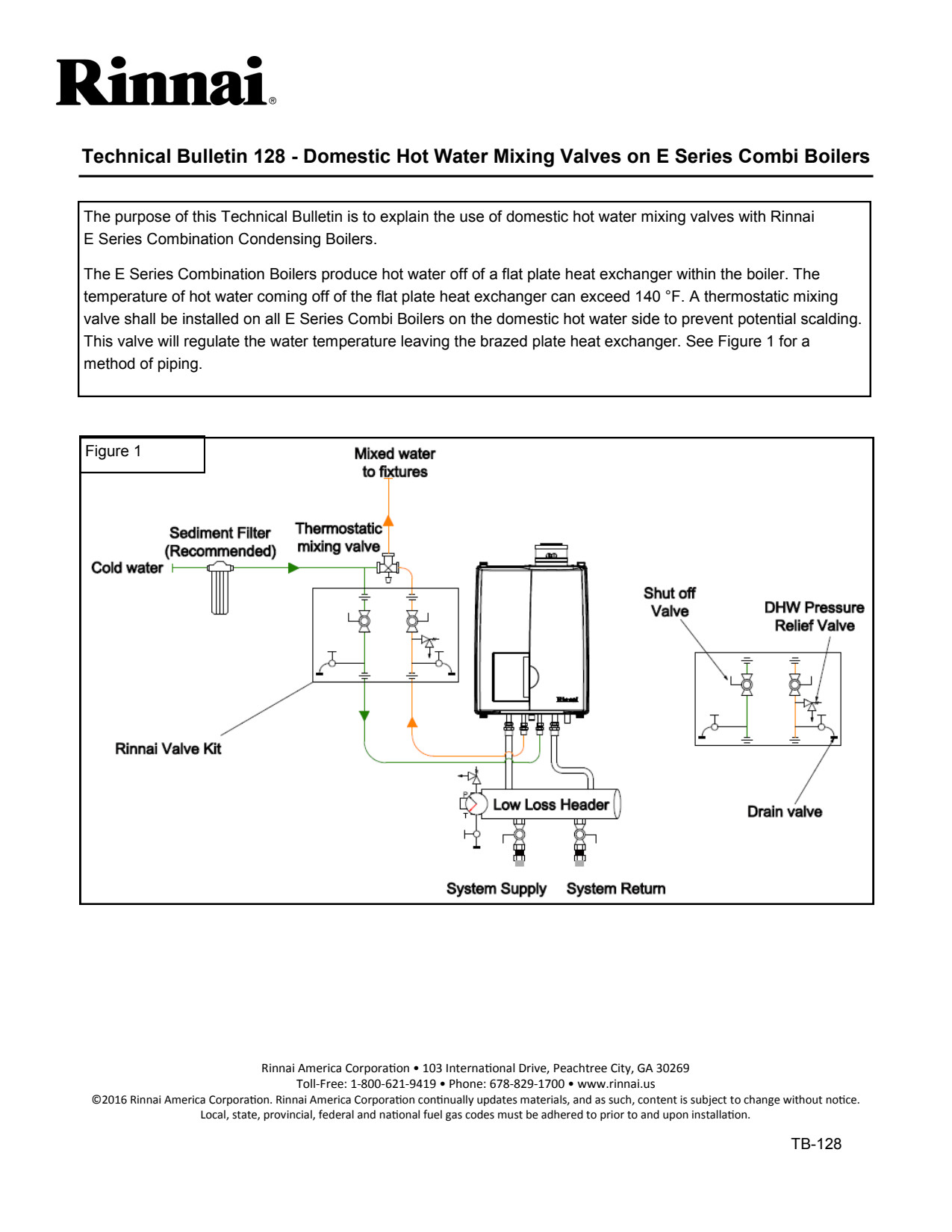

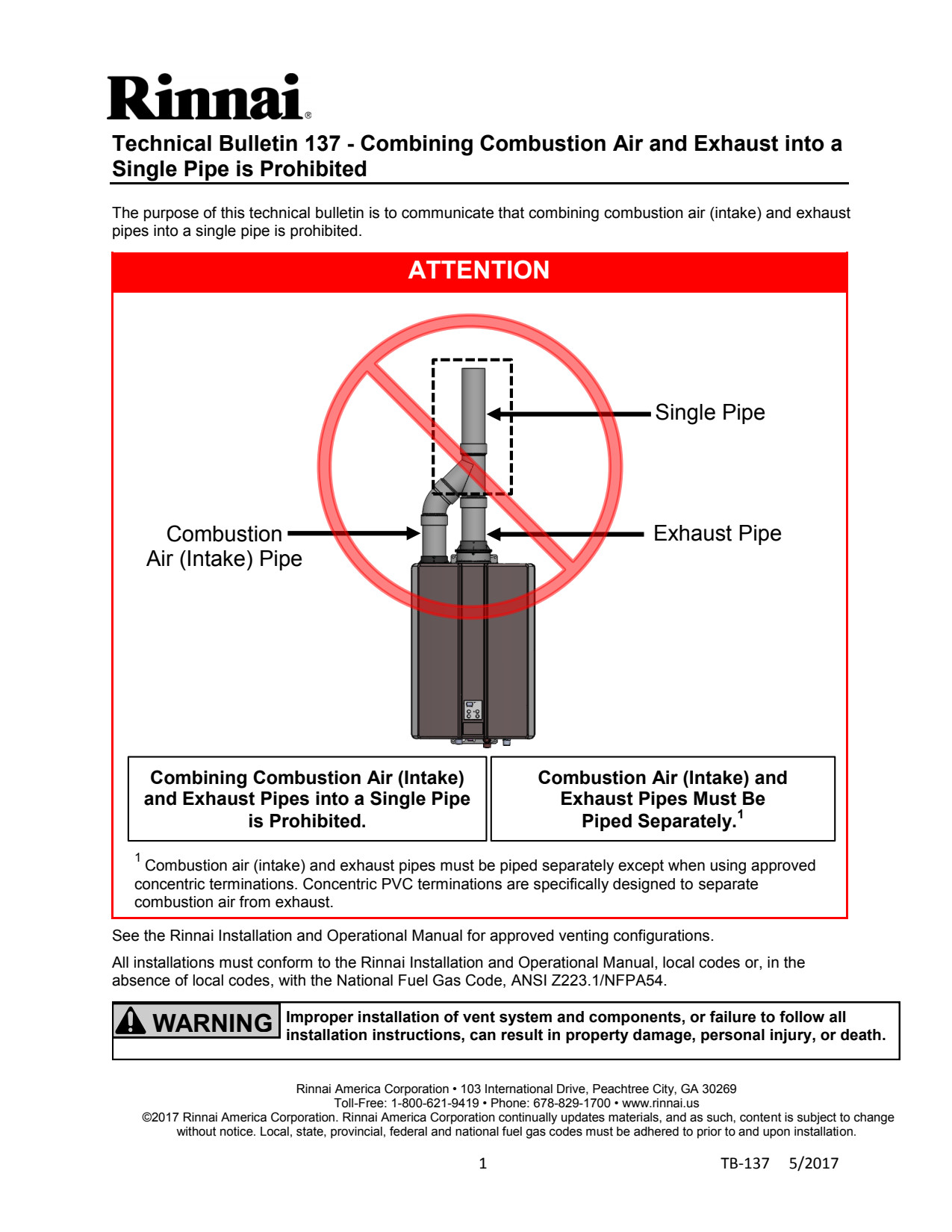

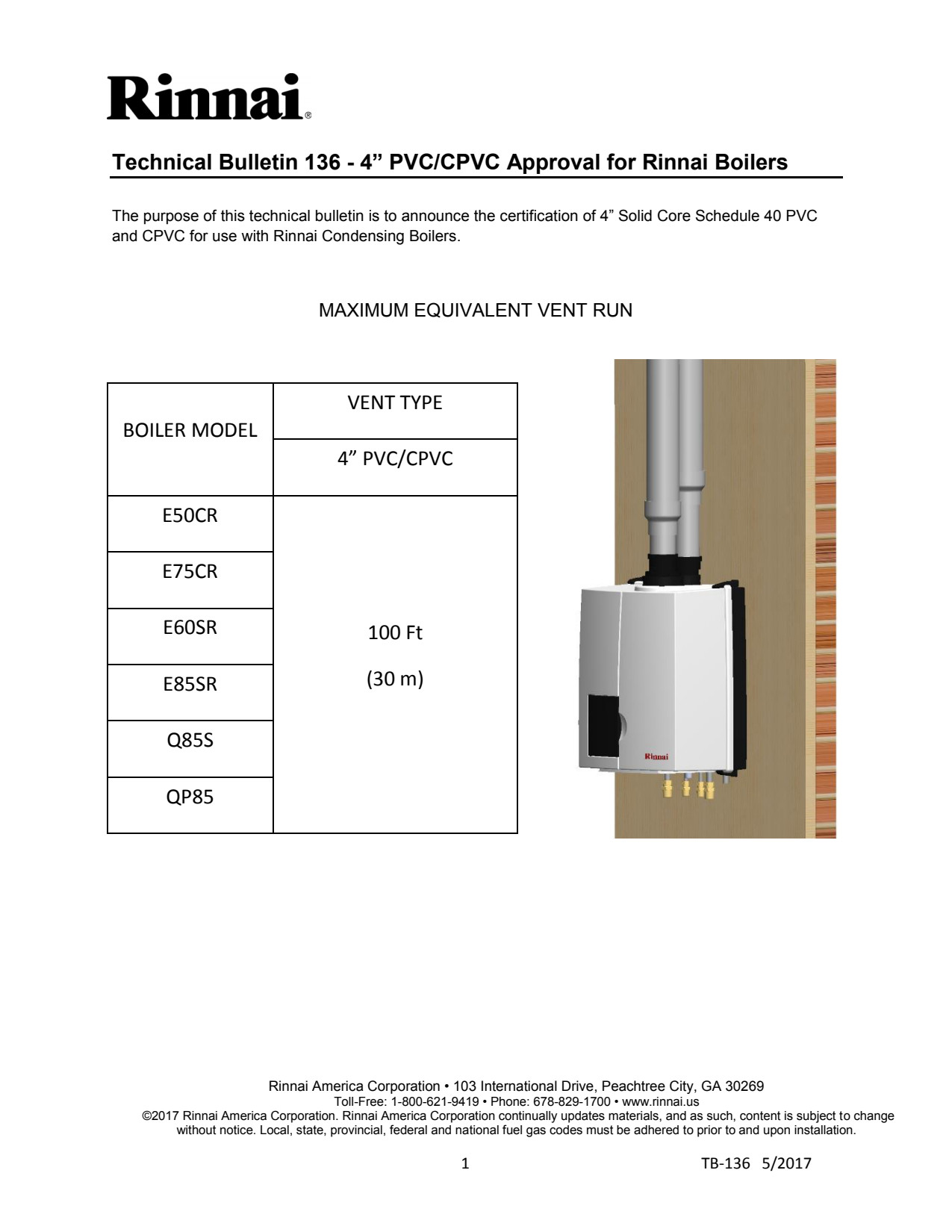

TB-127 Boiler Certification AnnouncementPDF 297 KBTB-128 E Combi DHW Mixing ValvePDF 251 KBTB-136 4 Inch PVC CPVC Approved for Rinnai BoilersPDF 245 KBTB-137 Combining Combustion Air and Exhaust into a Single Pipe is ProhibitedPDF 317 KBTechnical Bulletin 073 Condensing Termination Rain Ingress EnglishPDF 92 KBTechnical Bulletin 079 Rinnai Ubbink Venting EnglishPDF 1 MBTechnical Bulletin 080 Termination Diverter Kit EnglishPDF 47 KBZ-Flex Venting for BoilersPDF 202 KB
Warrantyi
| Warranty - Standard for Residential | 1 year on Labor / 2 Years on Parts / 12 Years on Heat Exchanger |
|---|---|
| Warranty - Standard for Commercial | 1 Year on Labor / 2 Years on Parts / 5 Years on Heat Exchanger |
iWarranty information is available in the Installation & Owner Manual.
