RSC160eN RSC Model Series
Select a thumbnail to view a larger version
Enjoy an endless supply of hot water with the SENSEI™ RSC160eN Super High Efficiency Plus condensing tankless water heater from Rinnai. Only the size of a small suitcase, the natural gas RSC160eN model is compact, easy-to-install and perfect for outdoor locations.
- Uniform Energy Factor (UEF): 0.95
- Warranty 15 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,000 BTU (minimum)
160,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | RSC160eN |
|---|---|
| Product Depth | 11.4 inch (291 mm) |
| Product Height | 29.2 inch (742 mm) |
| Product Width | 18.5 inch (470 mm) |
| Product Weight | 66 LBS (30 KG) |
| Gas Type | Natural Gas |
| Installation Type | Outdoor |
| Recirculation Capable | Yes |
| Residential ENERGY STAR® | Yes |
| Uniform Energy Factor (UEF) | 0.95 |
| Domestic Hot Water Flow Rate (Maximum) | 9 GPM / (34.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
Sensei Component Replacement Notice - RU/RSC/CUPDF 202 KB
Sensei Component Replacement Notice - RU/RSC/CUPDF 202 KB -
Sensei Conversion Manual - RU/CU/RURPDF 3 MB -

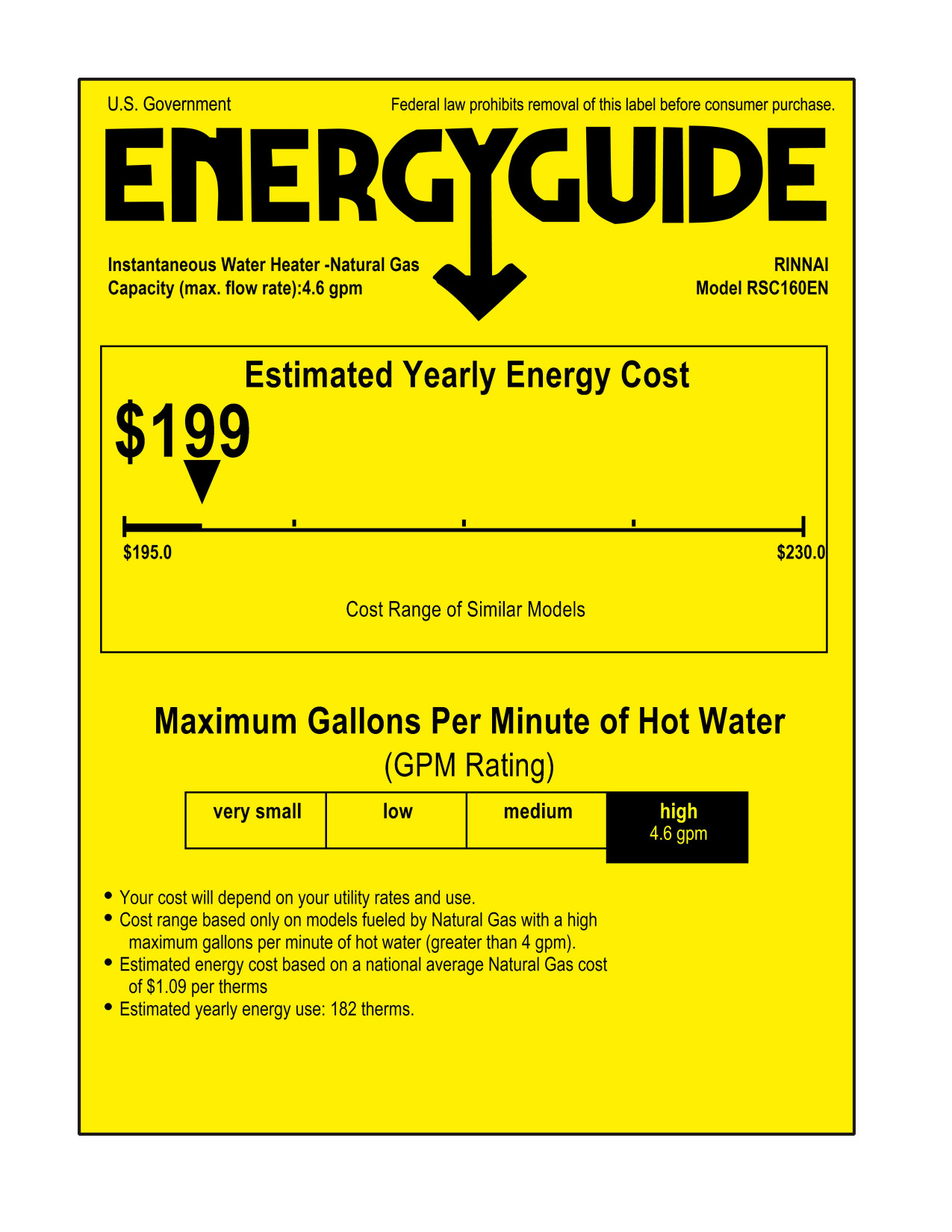

Energy Guide-RSC160eNPDF 878 KB -
SENSEI Installation and Operation Manual - RSCPDF 8 MB
SENSEI Installation and Operation Manual - RSC ModelsPDF 8 MB
Sensei Installation and Operation Manual - RSC ModelsPDF 8 MB
Ubbink Condensing Vent Manual.pdfPDF 4 MB -
@small.jpg)
Commercial Water Heating Solutions - RE/REP/CU/RSCPDF 4 MB
SENSEI Smart-Circ Comprehensive BrochurePDF 1 MB
GROUND WATER TEMPERATURE MAP UPDATE RSC160I_RSC160EPDF 317 KB
Condensing Group Water Temperature Guide US and CanadaPDF 1 MB -
Ultra Condensing Series Pipe Cover Specification SheetPDF 370 KB
RGB-CTWH-4 Specification SheetPDF 517 KB

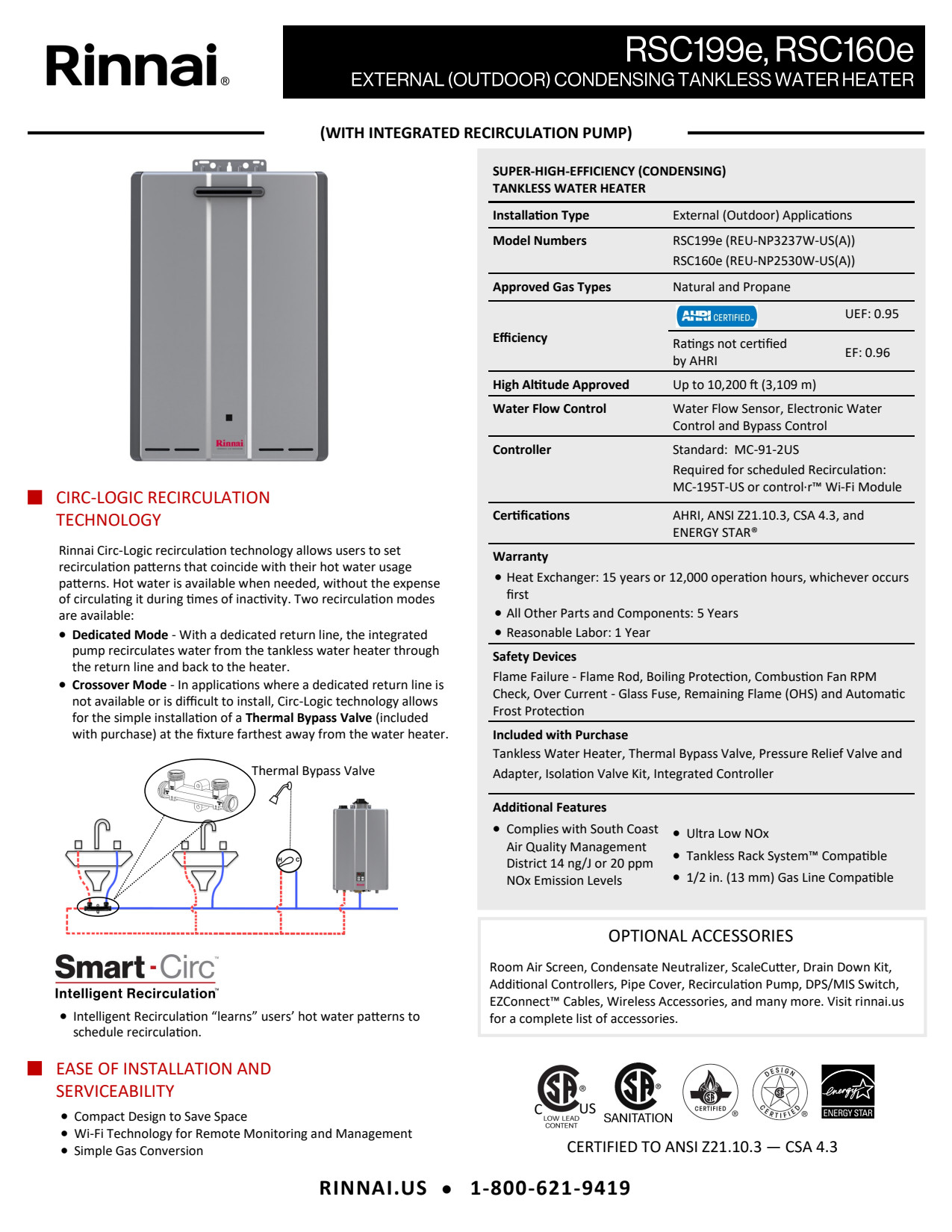

Sensei Condensing With Pump Outdoor Specification Sheet - RSC ModelsPDF 810 KB -
Technical Bulletin EZ Connect Combination - RSC SeriesPDF 531 KB -
Sensei Technical Data Sheet - RUR/RSC/CUPDF 1 MB@small.jpg)

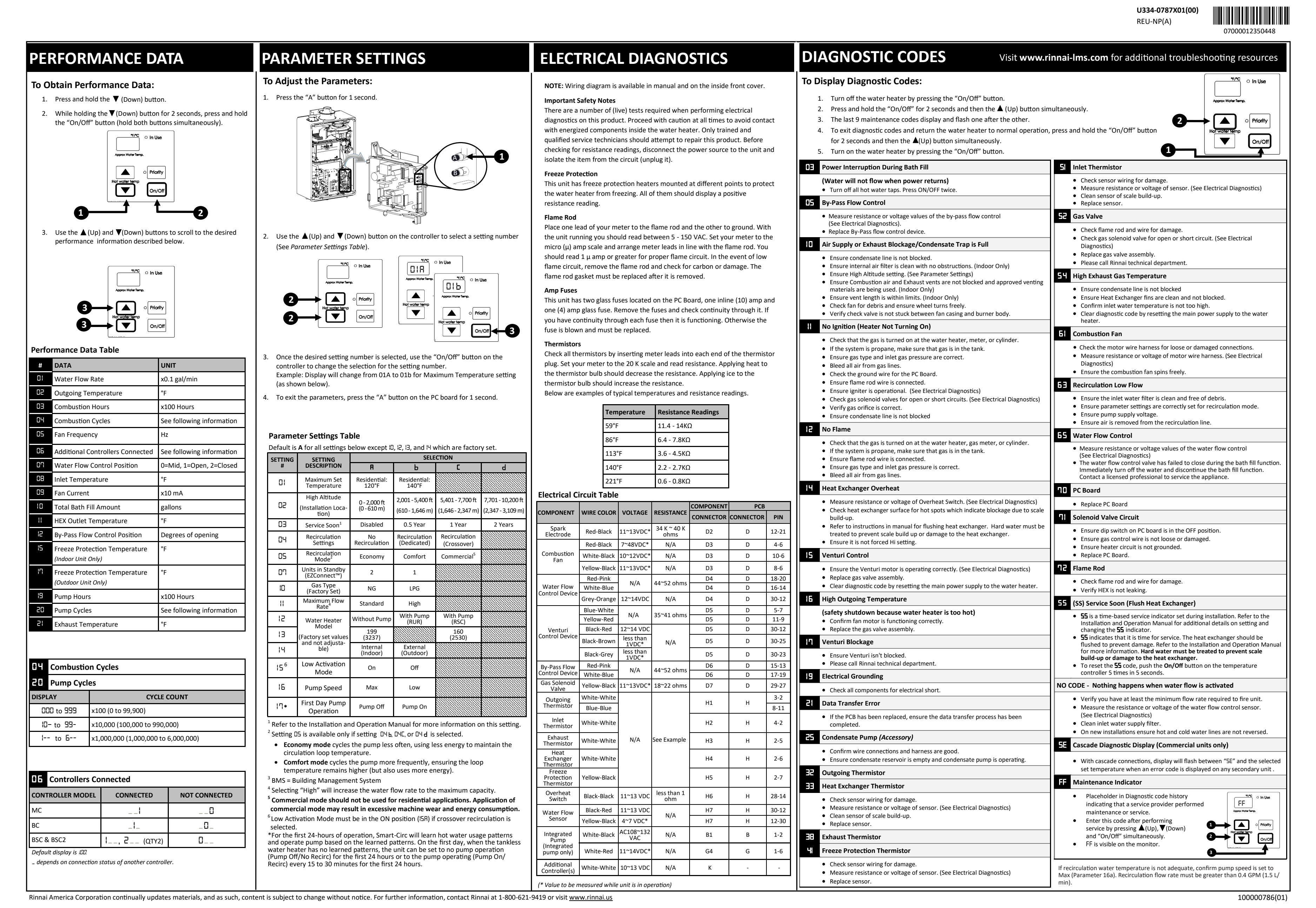

TWH Troubleshooting Technical Data SheetPDF 2 MB
Sensei Tech Sheet - RSC ModelPDF 3 MB
TWH Troubleshooting Technical Data Sheet FrenchPDF 2 MB
TWH Troubleshooting Technical Data Sheet SpanishPDF 2 MB -
Sensei Residential Warranty - EnglishPDF 219 KB
Warrantyi
| Warranty - Standard for Residential | 15 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
|---|---|
| Warranty - Standard for Commercial | 8 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
iWarranty information is available in the Installation & Owner Manual.
