EX17CTN EX_CT Model Series
EnergySaver
Select a thumbnail to view a larger version

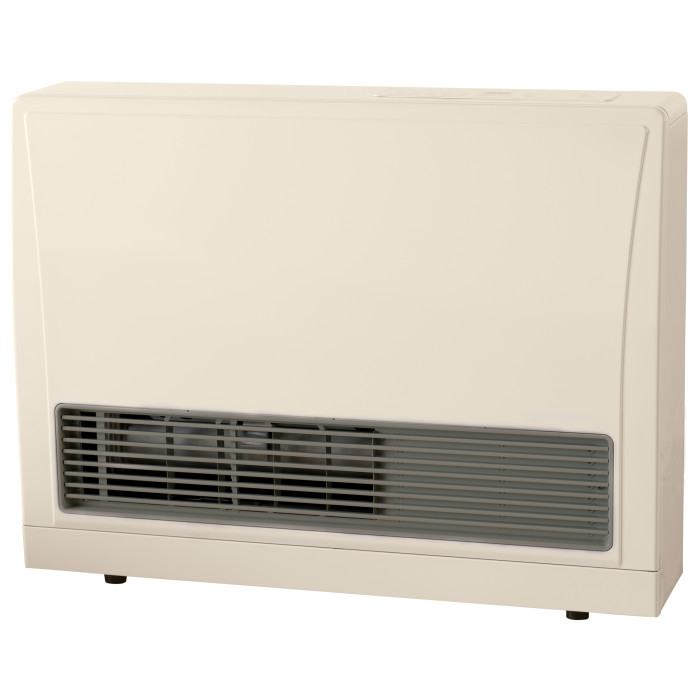

EX17CTN is a quick, flexible installed, ductless, natural gas, direct vent wall furnace from Rinnai; the perfect heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort.
- Warranty
- 8,700 BTU / (2.4 kW) (minimum)
16,700 BTU / (4.9 kW) (maximum)
Specifications
| Manufacturer Trade Model Number - U.S. | EX17CTN |
|---|---|
| Product Depth | 10.1 in / (257 mm) |
| Product Height | 22.9 in / (589 mm) |
| Product Width | 29.9 in / (760 mm) |
| Product Weight | 57 lb / (26 kg) |
| Gas Type | Natural Gas |
| Central Heating Capacity | 16,700 BTU / (4.9 kW) |
Documentation
Select Document Language
English (US)
French (Canadian)
Spanish
-
Direct Vent Service Manual Technical Data Sheet - ESPDF 13 MB
Direct Vent Wall Furnace Installation And Operational Manual EnglishPDF 7 MB

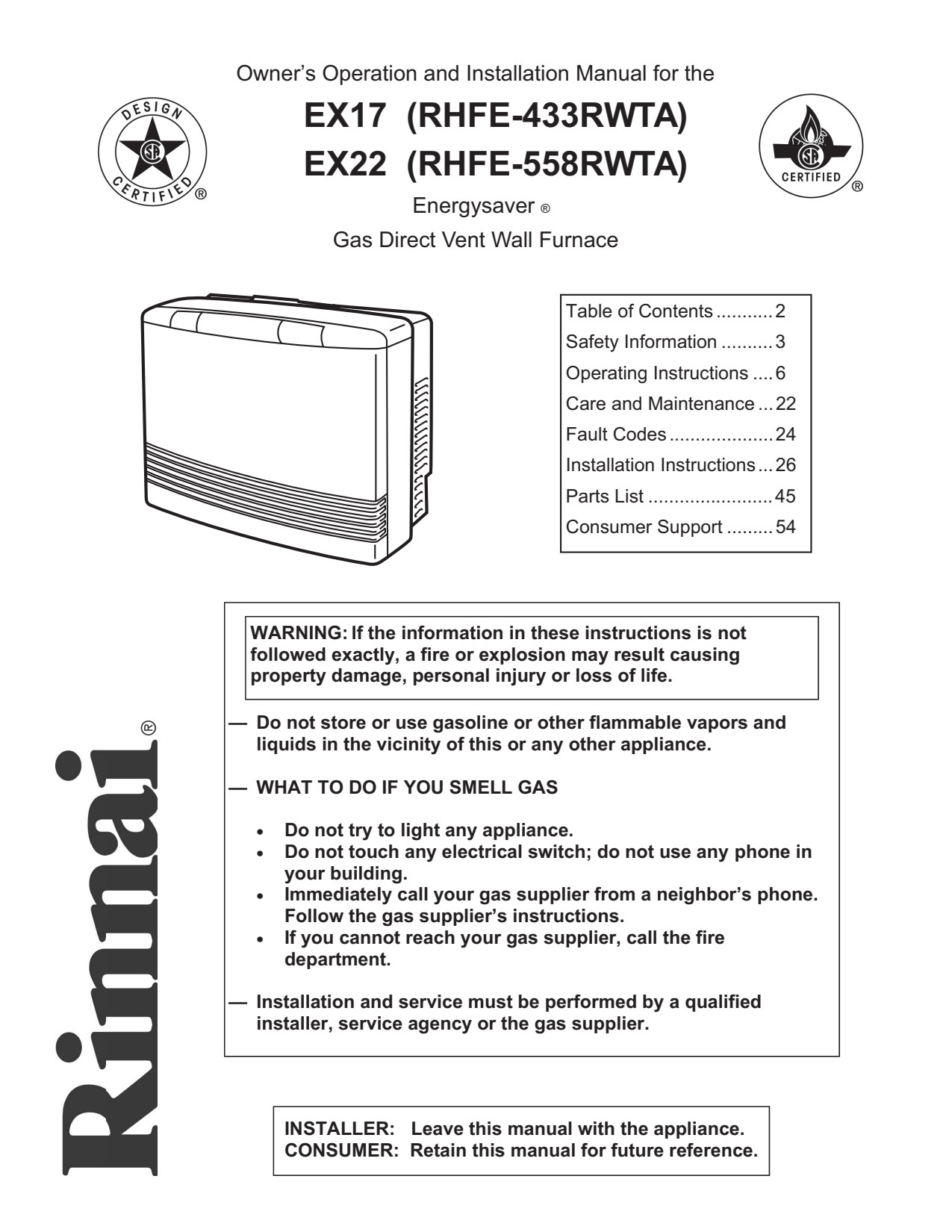

RHFE-433RWTA, 558RWTA Installation and Operation Manual FrenchPDF 3 MB

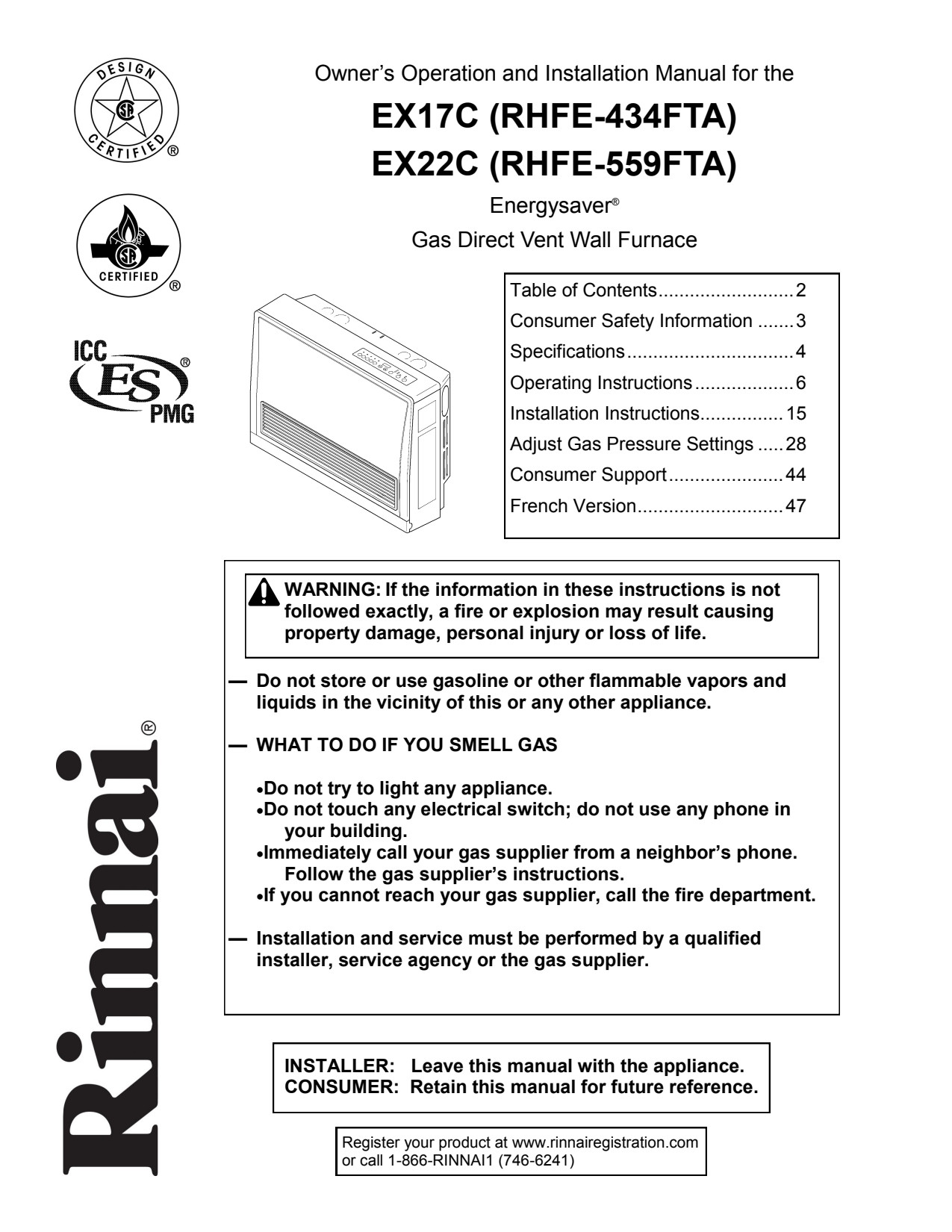

RHFE-434FTA, 559FTA Installation and Operation Manual FrenchPDF 4 MB -
No documents found for this document type.
-

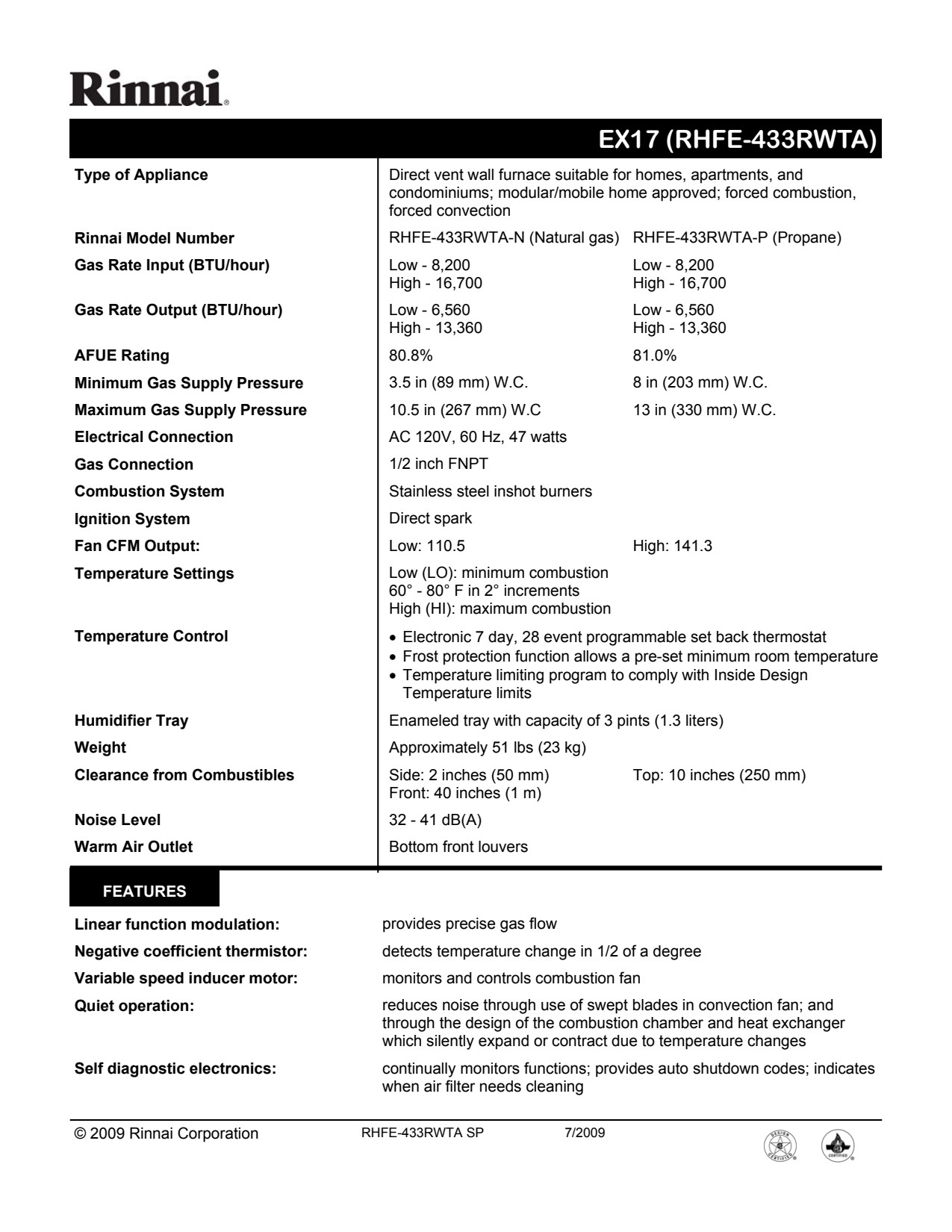

EX17 RHFE-433RWTA Specification Sheet EnglishPDF 57 KB

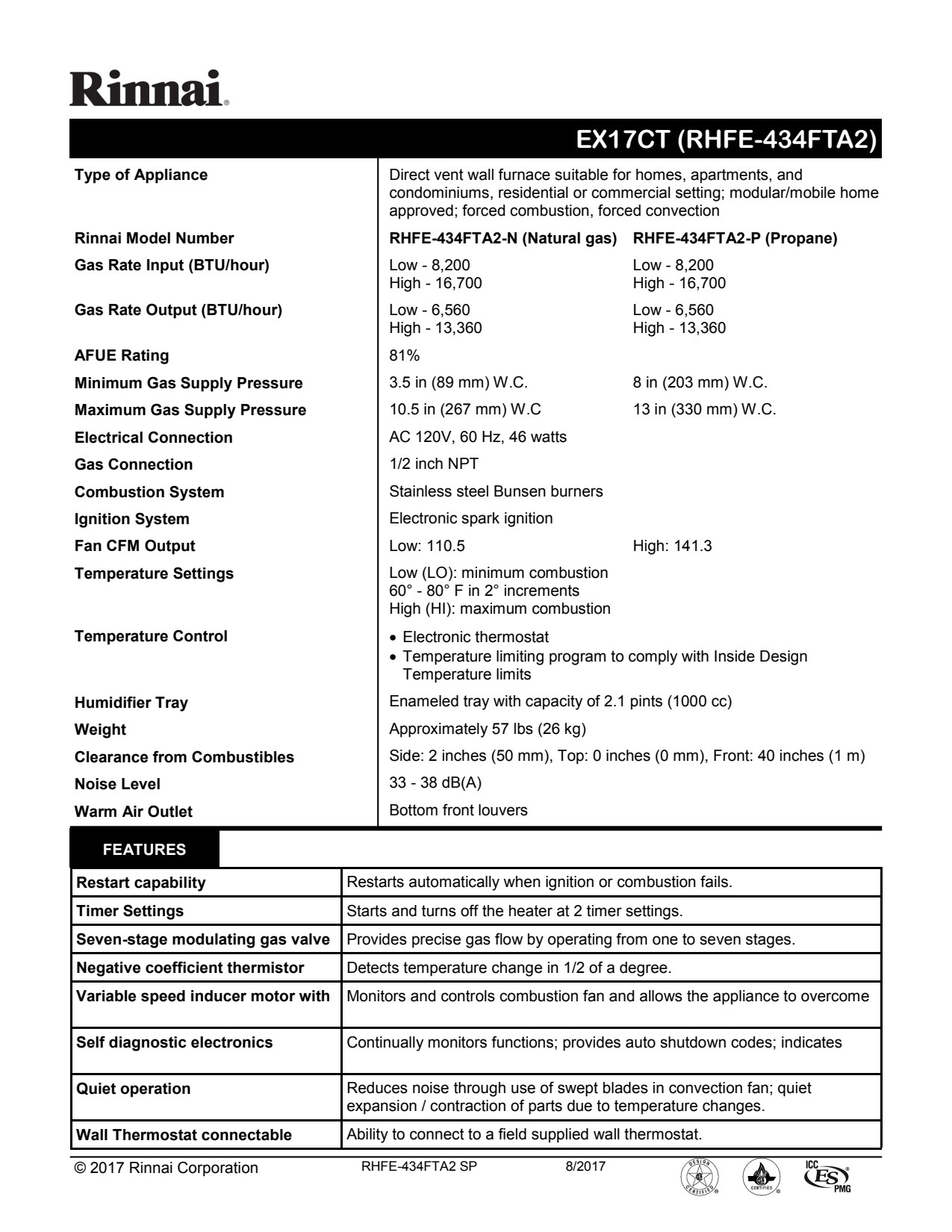

Direct Vent Furnace Spec Sheet EnglishPDF 787 KB
-
Tech Bulletin No 037: Replacing Burner Box Packing Gasket (TB-037)PDF 52 KB
Technical Bulletin 081 Setting a Maximum Temperature Limit on Energy Saver Models EnglishPDF 19 KB
Tech Bulletin No 172: Rinnai Natural Gas-Hydrogen Fuel Mixture Products (TB-172)PDF 279 KB
-
Direct Vent Furnaces Warranty - EX11DT/EX11CT/EX38DTPDF 272 KB
iWarranty information is available in the Installation & Owner Manual.
Related Products
DV Remote Thermostat Kit
View All Accessories
