TRW03CXPiN TRW Wall-Mount Commercial Rack System Model Series
Commercial Wall Hanging Rack Systems (TRW)
Select a thumbnail to view a larger version

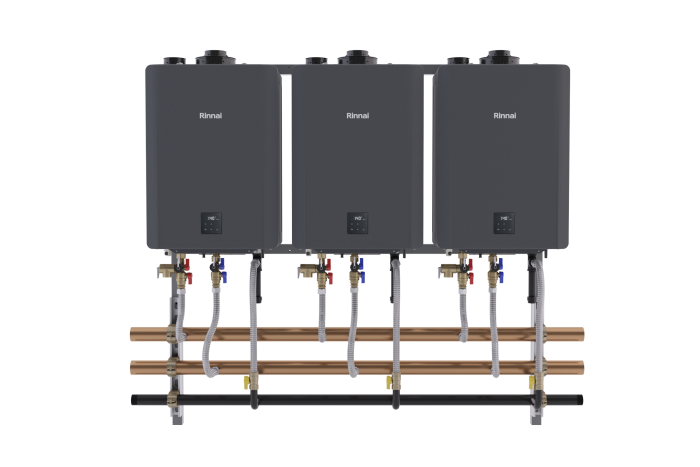

This 3-unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications.
- Uniform Energy Factor (UEF): 0.96
- 97% Thermal Efficiency
- Warranty 1 year on Rack Components/ Refer to tankless water heater model warranty details
- 15,000 BTU / (4.3 kW) (minimum)
597,000 BTU / (174.9 kW) (maximum) - Indoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | TRW03CXPiN |
|---|---|
| Product Depth | 13 in / (330 mm) |
| Product Height | 56.67 in / (1439 mm) |
| Product Width | 65 in / (1651 mm) |
| Product Weight | 244 lb / (110.7 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor |
| Uniform Energy Factor (UEF) | 0.96 |
| Domestic Hot Water Flow Rate (Maximum) | 27 GPM |
Documentation
-

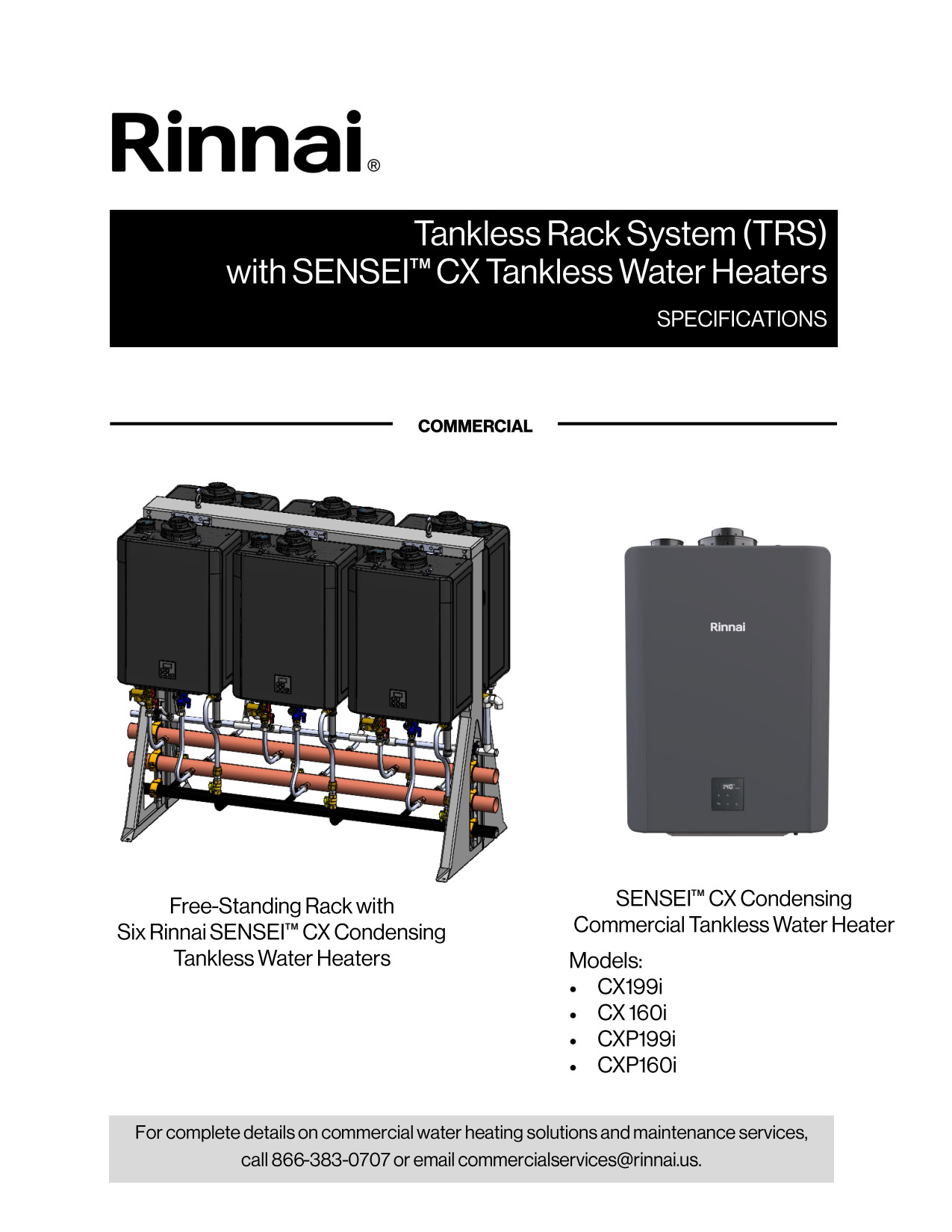

Sensei TRS With CX Specification SheetPDF 4 MB
Sensei TRS with CX Units Specification sheetPDF 1 MB
Warrantyi
| Warranty - Standard for Commercial | 1 year on Rack Components/ Refer to tankless water heater model warranty details |
|---|
iWarranty information is available in the Installation & Owner Manual.
