CHS199100HCXiN CHS-HCX Model Series

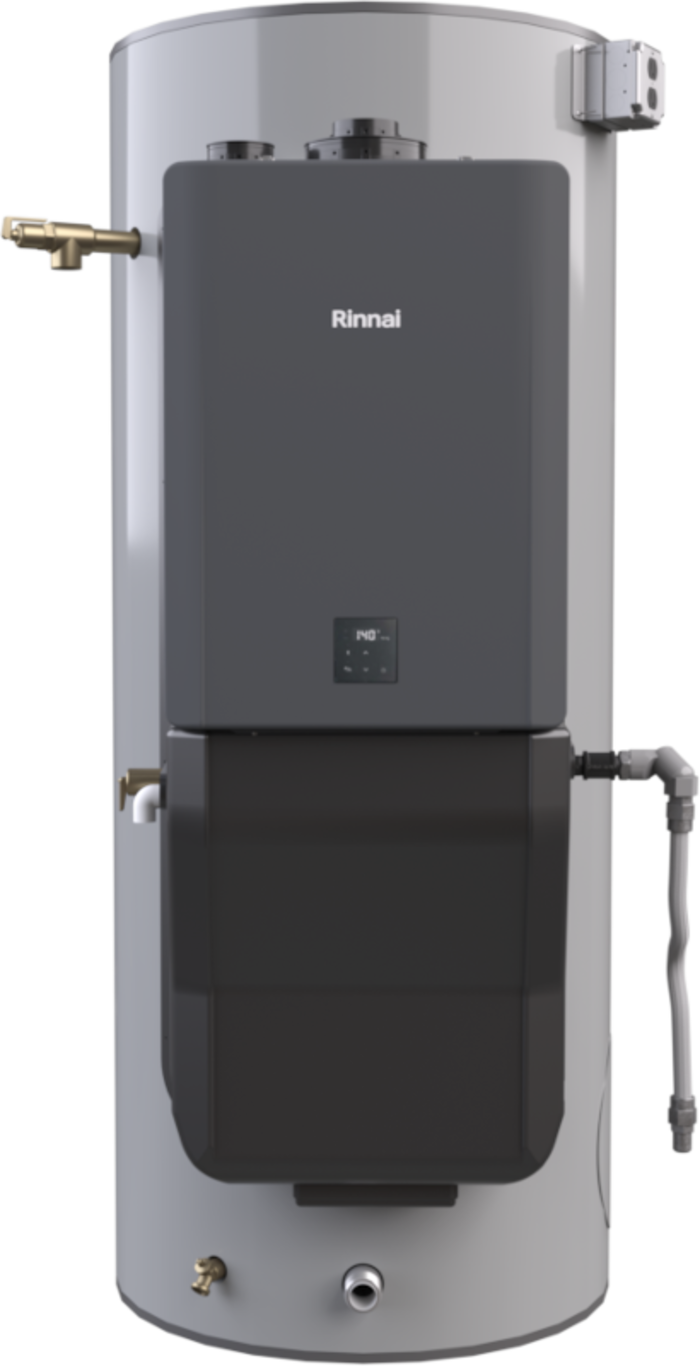

Demand Duo™ H-Series Hybrid Water Heating System
Select a thumbnail to view a larger version
With Rinnai’s new Demand Duo H-Series, reliable hot water comes in a high-performance, high-efficiency package that also reduces cost of ownership. Rinnai’s hybrid technology is unlike anything else on the market, ensuring a longer service life than high-efficiency tanks, while also producing abundant hot water for peak commercial hours.
- Uniform Energy Factor (UEF): 0.96
- Warranty 6yrs on tank/ 5 years on all parts
- 15,000 BTU / (4.3 kW) (minimum)
199,000 BTU / (58.3 kW) (maximum) - Indoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | CHS199100HCXiN |
|---|---|
| Product Depth | 40.2 inch / (1021 mm) |
| Product Height | 69.6 inch / (1768 mm) |
| Product Width | 24.1 inch / (612 mm) |
| Product Weight | 332 lb / (150 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor |
| Recirculation Capable | Yes |
| Uniform Energy Factor (UEF) | 0.96 |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-

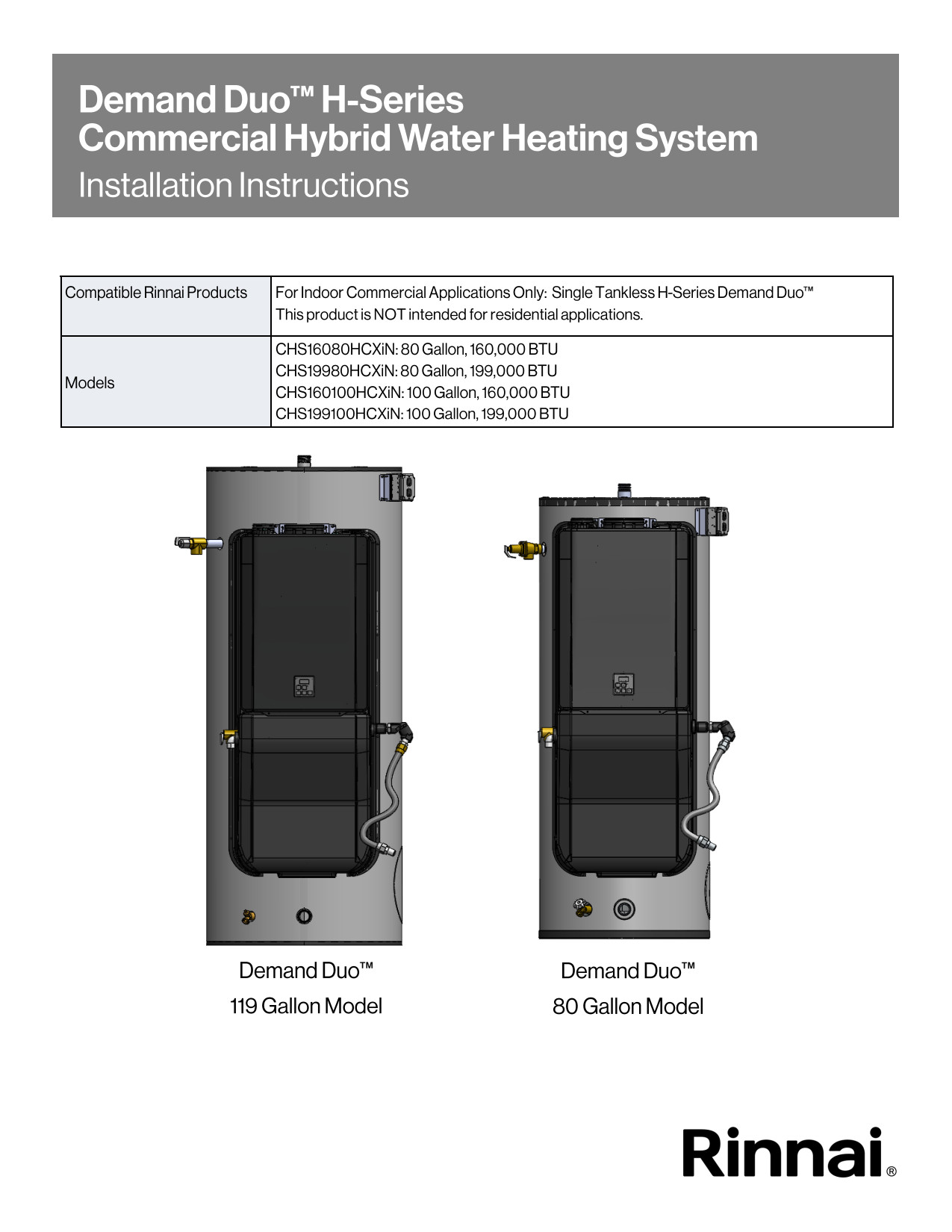

Demand Duo H-Series With SENSEI Owners Installation and Operation Manual English - CHS160-HCXPDF 6 MB -
No documents found for this document type.
Warrantyi
| Warranty - Standard for Commercial | 6yrs on tank/ 5 years on all parts |
|---|
iWarranty information is available in the Installation & Owner Manual.
